1. Introduction

2. Carbon Steel Surface Treatment

3. Stainless Steel Surface Treatment

4. Aluminum Surface Treatment

5. Surface Treatment Process Comparison Table

6. Industry Insight: The Highly Specialized Nature of Surface Treatment

7. Frequently Asked Questions

1. Introduction

Surface treatment is a key step in sheet metal fabrication. It not only enhances the appearance of parts but also protects the base material from rust and wear. Different base materials require different treatments. The primary goal for carbon steel is to prevent rust at a low cost; for stainless steel, it is often to alter the appearance or add specific functionality; and for aluminum, it is to form a hard, protective layer.
This guide will introduce the most common surface treatment methods for these three materials and explain why the surface treatment industry is highly specialized. You will learn which process to choose and why.

2. Carbon Steel Surface Treatment

Carbon steel is strong and cheap. But it rusts easily. So, the main goal of surface treatment for carbon steel is rust protection. Here are the three most common ways to do this .

1.1 Powder Coating (Spray Painting)

Powder coating is the most used finish for carbon steel. It is cheap and good for the environment. ( For more details, please check another vlog on the website: Metal Powder Coatings: Technology, Application, and Performance Optimization)

• How It Works: A spray gun gives the powder paint a static charge. The metal part has the opposite charge. This makes the powder stick to it. Then, the part goes into a hot oven. The heat melts the powder into a smooth, hard layer .

• Good Points: It creates a tough finish. It comes in many colors. It is very good at stopping rust.

• Bad Points: If the coating gets chipped, it is hard to fix. You can see the repair.

• Best For: Indoor and outdoor boxes, machine covers, and home appliance cases.

2.2 Liquid Painting

Liquid painting is used for special jobs. It is the best choice for very large parts that cannot fit in a curing oven.

• How It Works: Liquid paint is sprayed on with a gun. The paint can be air-dried or baked at a low heat.

• Good Points: You can fix small damage easily. A skilled worker can mix paint to match the old color perfectly.

• Bad Points: It is not as strong as powder coating. It can be less kind to the environment because of the chemicals in the paint.

• Best For: Very large machine parts and custom jobs where look is very important.

2.3 Galvanizing (Zinc Coating)

Galvanizing means putting a layer of zinc on the steel. There are two main ways to do this: hot-dip and cold plating. ( For more details, please check another vlog on the website: What is Galvanizing Surface Treatment? )

Hot-Dip Galvanizing

• How It Works: The steel part is dipped into a big tank of very hot, liquid zinc.

• Good Points: The zinc layer is thick. It gives very strong rust protection for outdoor use.

• Bad Points: The surface is not always smooth or pretty.

• Best For: Outdoor structures, lamp posts, and parts that must last a long time in the weather.

Cold Plating (Electro-galvanizing)

• How It Works: An electric current pulls zinc onto the steel surface.

• Good Points: The surface is smooth and looks good. It is shiny and clean.

• Bad Points: The zinc layer is thin. It does not stop rust as well as hot-dip.

• Best For: Indoor parts where look matters more than extreme rust protection.

3. Stainless Steel Surface Treatment

Stainless steel already has good rust resistance. We treat its surface mainly to change the texture, the look, or to add a special feature like making it easy to clean .

3.1 Basic Texture Finishes (Done In-House)

These finishes change how the metal looks and feels. Most sheet metal shops can do these themselves.

Hairline Finish (Wire Drawing)

This is the most common finish for stainless steel. You see it on kitchen equipment and elevator doors .

• How It Works: A belt with abrasive material moves in one direction across the metal. This creates long, straight lines.

• Best For: Appliance panels and architectural trim.

Random Finish (Non-Directional)

This finish has a soft, circular pattern. It does not have the hard, cold look of a hairline finish .

• How It Works: A round brush or pad moves in a random pattern on the surface.

• Best For: Food and pharmacy machines where a soft, matte look is needed.

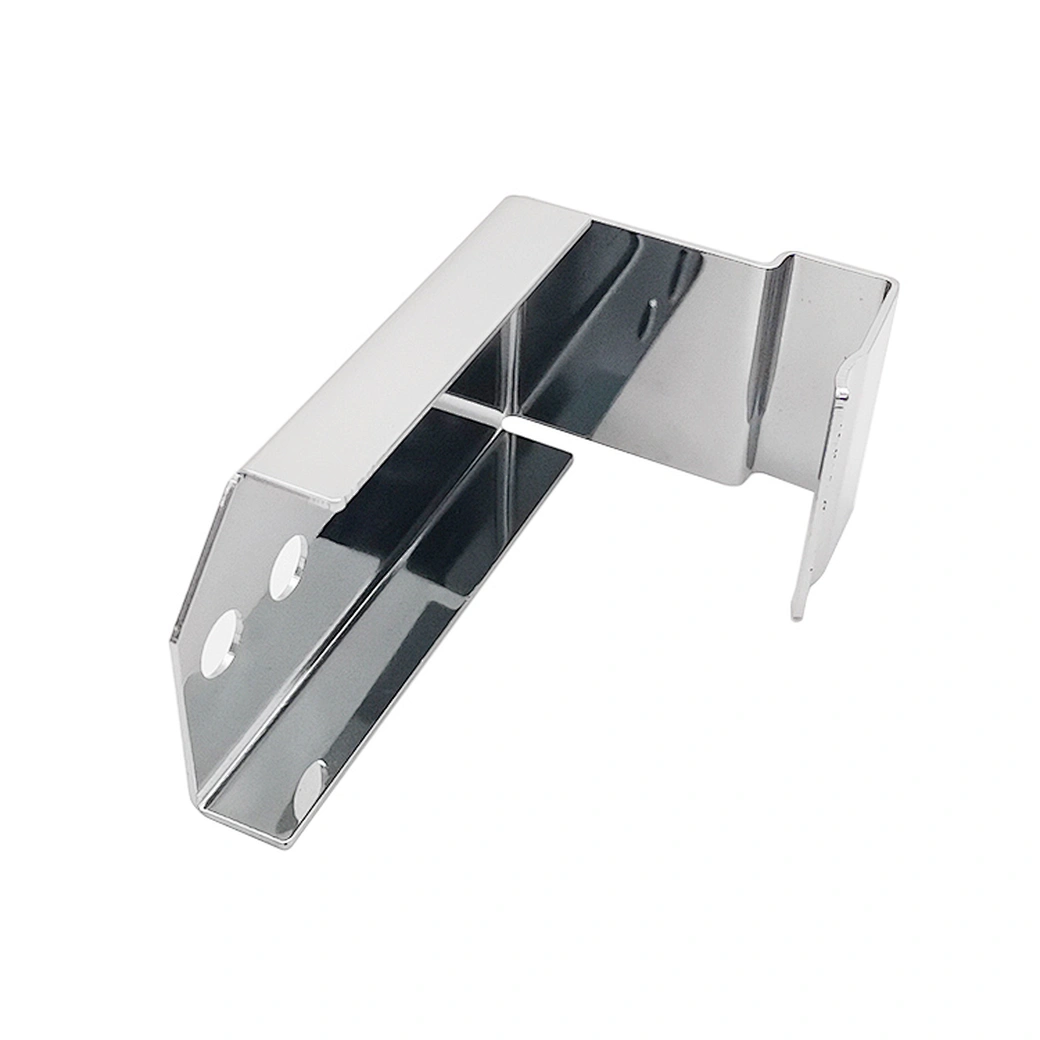

Mirror Finish (Polishing)

This makes the surface shine like a glass mirror. ( For more details, please check another vlog on the website: More about Surface Treatment: Polishing)

• How It Works: Workers use polishing wheels and paste. They start with rough grit and move to very fine grit.

• Types: 8K finish is the standard in the industry. 12K finish is much more expensive and looks brighter than a home mirror.

• Best For: Decorative parts, high-end hotel lobbies, and art pieces.

3.2 Industrial and Protective Finishes (Often Outsourced)

These finishes add a layer or change the surface chemistry for a specific job.

Sandblasting

This process cleans the surface and gives it a uniform, matte look .

• How It Works: A machine shoots fine sand at the metal at high speed.

• Important Note: After sandblasting, you must apply an anti-fingerprint coating. If you do not, any finger touch will leave a mark that cannot be cleaned off.

• Best For: Giving a uniform matte finish before painting or PVD coating.

Passivation

This is a chemical process. It is almost invisible but very important for industrial parts like tanks .

• How It Works: The part is put in an acid bath. This removes free iron from the surface and helps the natural protective layer on the stainless steel grow.

• Note: This process has strict environmental rules. It is now less common in some areas because of this.

• Best For: Water tanks and chemical containers.

Teflon Coating (PTFE)

This is the same coating used on non-stick frying pans .

• How It Works: The coating is sprayed on and then baked.

• Good Points: The surface becomes very slippery. Nothing sticks to it. It is easy to clean and resists chemicals.

• Best For: Mixing tanks and containers in food, pharmacy, and makeup factories.

Colored Plating (PVD)

This is for high-end decorative work .

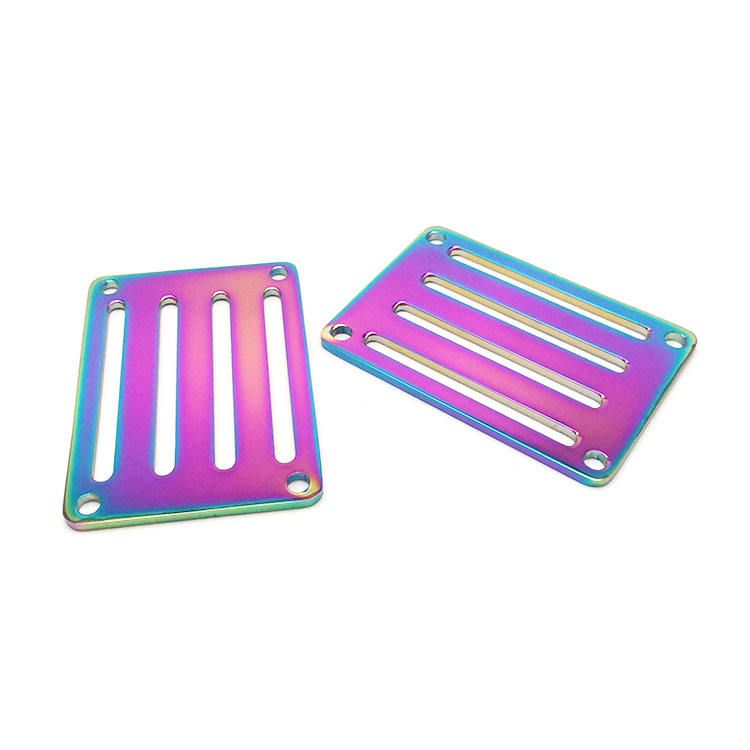

• How It Works: In a vacuum, a process deposits thin layers of material onto the surface. This creates colors like black, gold, and rose gold.

• Best For: Hotel decorations, luxury elevator panels, and high-end hardware.

4. Aluminum Surface Treatment

Aluminum is light but soft. Its density is only about one-third of steel. The main goal of treatment is to make the surface harder and better looking .

4.1 The Standard Process: Sandblasting + Anodizing

About 80% to 90% of all aluminum parts get this combination of treatments.

Step 1: Sandblasting

First, the aluminum is sandblasted. This cleans it and gives it a nice, even, matte look. This step also helps the next layer stick better .

Step 2: Anodizing

After sandblasting, the part goes through anodizing .

• How It Works: The part is put in a chemical bath. An electric current passes through it. This creates a hard oxide layer on the surface. This layer is part of the metal now, not just paint on top.

• Colors: You can dye this layer. Common colors are natural silver, black, and red.

• Best For: Electronic device cases, architectural parts, and any part needing a durable, good-looking finish.

4.2 The Upgrade Process: Hard Anodizing

For parts that must be very tough, there is a special version of the process.

Hard Anodizing

Regular aluminum is soft. But for some uses, it needs to be hard .

• How It Works: This is the same as regular anodizing, but the process is changed to make a much thicker and harder layer.

• Good Points: It makes the surface very hard. It can resist wear, heat, and damage much better.

• Best For: Parts for airplanes, machines, and hydraulic systems that move against each other.

5. Surface Treatment Process Comparison Table

6. Industry Insight: The Highly Specialized Nature of Surface Treatment

A very important thing to know about this industry is that it is highly specialized. No single factory can do all types of surface treatment well.

• One Factory, One Specialty: A company that does anodizing for aluminum will not do zinc plating for steel. A company that does galvanizing will not do Teflon coating. They each have their own special tanks, chemicals, and skills .

• Why Outsourcing Is Normal: When a sheet metal shop sends parts out for surface treatment, it does not mean they lack skill. It means they are using the right supply chain model. To get a good result, you must send the part to the factory that does only that one job.

• Expert Insight: "In practice, the most successful projects are those where the surface finish decision is made early. Communication must be clear, and quality must be checked during production," notes one industry guide on stainless steel finishes . Another source adds that "choosing the wrong process not only wastes cost but can also cause product failure and customer complaints" .

• How to Choose a Supplier: Always look for a factory that specializes in the specific process you need. If you send aluminum parts to a steel plating shop, the quality will likely be poor.

7. Frequently Asked Questions

Q1: Does stainless steel always need surface treatment?
No. Stainless steel like 304 or 316 can be used indoors without treatment. But, if the part goes outside, near the ocean, or in a pool area, it needs treatment like passivation to stop rust. If you want a specific color or a matte look, you also need treatment.

Q2: How do I choose between powder coating and liquid painting for my steel part?
Pick powder coating if you want the toughest finish and the part can fit in an oven. It is better for the environment and lasts longer. Pick liquid painting if the part is too big for an oven, or if you need to do touch-up work and must match the color perfectly.

Q3: Why is my aluminum part sent to a different factory for anodizing?
This is normal. Anodizing requires special chemical tanks and electrical equipment. Most sheet metal shops do not have this. They send it to a shop that only does anodizing. This is not a lack of skill. It is how the specialized industry works.

Q4: What is the difference between 2B and No. 4 finish on stainless steel?
2B is the standard finish. It is smooth, grey, and semi-reflective. It is made by rolling. No. 4 is a "brushed" finish. It has visible lines and is more decorative. No. 4 costs more because it needs extra work after rolling.

Q5: My steel part needs to be outside for 20 years. What finish should I use?
You should use hot-dip galvanizing. It creates a thick zinc layer that protects the steel for a very long time. For even better protection, you can combine it with a special paint system made for galvanized steel.

Q6: Can I get a colored surface on aluminum?
Yes. The best way is through anodizing. You can dye the oxide layer many colors like black, red, gold, or blue. The color becomes part of the metal surface.
