CNC Machining a Surgical Instrument Component at ±0.01 mm
1. Project Overview
This project was a surgical instrument CNC machining program for a component that goes into a surgical instrument assembly. The part carries precise cylindrical features and assembly dimensions, so it had to hold shape and size across a high-volume order.
| Specification | Project Requirement |
|---|---|
| Part | Surgical Instrument Component |
| Material | 316 Stainless Steel |
| Process | CNC Turning + Milling |
| Surface Requirement | Clean surface finish |
| Tolerance | ±0.01 mm |
| Monthly Volume | 20,000 pcs |
| Critical Features | Cylindrical features and assembly dimensions |
| Quality Focus | Consistent dimensions across batches |
This is a stainless steel surgical instrument component made for high-volume medical parts machining. It is a demanding part because 20,000 pieces must land within ±0.01 mm — not just the first article.
2. The Customer's Manufacturing Challenges
The customer faced three challenges before we started production.
Machining Precise Cylindrical Features
Cylindrical features were important for assembly. The component has to fit and rotate smoothly inside the instrument, so the turned diameters had to be right. Turning was needed to control rotational dimensions, and the transition between turned and milled features needed to remain stable. This is the core of precision cylindrical machining.
Maintaining ±0.01 mm Dimensional Control
The component required a tight ±0.01 mm tolerance medical machining window. Dimensional variation could affect assembly consistency — a part that is slightly large will not fit, and a part that is slightly small will feel loose. At 20,000 pieces a month, the process had to stay stable, not just the first article.
Achieving a Clean Surface Finish
The surface finish needed to be clean and consistent. Cutting conditions, tool condition, deburring, and handling all affect the final surface. A clean finish is not about looks — it matters for how the component behaves in assembly. The actual surface roughness value was confirmed from the drawing before we set the process.
3. Our CNC Machining Solution
Our answer combined the right material, a coordinated turning and milling flow, and inspection that runs during production — not just at the end.
Selecting 316 Stainless Steel
316 stainless steel CNC machining was the right choice for this component. 316 offers strong corrosion resistance and material durability, which matter in demanding component applications. It can be more challenging to machine than aluminum because of its cutting characteristics — it is tough, work-hardens, and holds heat at the cutting edge.
Tool condition and cutting parameters must be carefully controlled. We run sharp tooling, controlled speeds and feeds, and replace inserts on a fixed schedule so the cutting edge never wears into the tolerance window.
This project was supported by our experience in 316 stainless steel CNC machining.
Combining CNC Turning and Milling
CNC turning and milling for medical parts worked together on this component. CNC turning was used for the primary cylindrical features, while milling handled the secondary geometries required for assembly — flats, slots, or other non-rotational features where the drawing called for them. Coordinating both operations helped control the complete part profile and reduce dimensional variation.

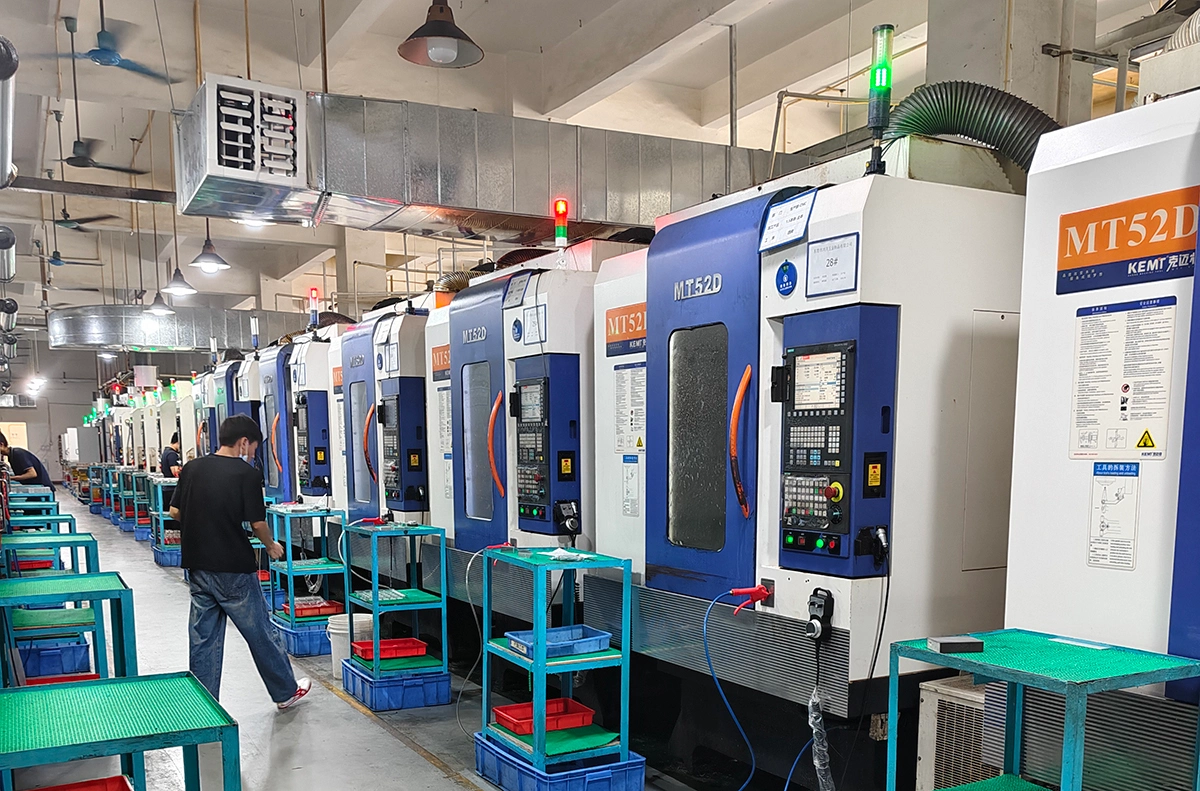

The component was manufactured through precision CNC turning and milling, with each operation building on the same datum structure.
In-Process Inspection
In-process inspection CNC machining was used during production rather than relying only on final inspection. Critical dimensions were monitored across production batches, and inspection feedback helped identify process drift early — before a run of bad parts happened.
"On a tight-tolerance stainless steel part, you cannot afford to find out at the end that the batch drifted. In-process inspection turns quality from a report into a control."
— Quality Manager, DongGuan YiTai Electronic Technologies
4. Step-by-Step Manufacturing Process
The production flow below runs at 20,000 pieces per month. Each step has defined checkpoints so problems are caught early.
- Drawing and DFM review — identify critical diameters, datum structure, tolerance stack-up, and surface requirements
- 316 stainless steel material preparation — confirm material cert and bar/stock dimensions
- CNC turning of cylindrical features — control the rotational diameters and lengths
- CNC milling of secondary geometries — flats, slots, and holes required for assembly
- In-process dimensional inspection — verify critical dimensions between operations and during the batch
- Deburring and surface cleaning — remove burrs from turned and milled edges, clean the part
- Final inspection and batch release — confirm dimensions, cylindrical features, surface condition, and cleanliness
5. How We Controlled ±0.01 mm Tolerance
To maintain the ±0.01 mm CNC machining tolerance, we identified the critical dimensions before production and monitored them throughout the machining process. In-process inspection helped detect dimensional drift early and supported consistent results across the 20,000-piece monthly production volume.
- Define critical dimensions first — diameters, lengths, and assembly surfaces that drive fit
- Stable workholding — repeatable locating references so every part is presented the same way
- Monitor during the batch — sample critical dimensions at fixed intervals, not just at the start
- Check tool wear — inserts are inspected and replaced on a schedule before they affect size
- Confirm before shipment — final dimensional check on the finished batch
This is what tight tolerance medical components require: a process that is monitored, not assumed.
6. Surface Finish and Final Part Quality
After turning and milling, the components were deburred and checked for surface condition. The final inspection focused on dimensional accuracy, cylindrical features, assembly-related surfaces, and overall part cleanliness.
Clean surface finish for surgical instrument components comes from several controls working together:
- Cutting conditions — stable speed, feed, and depth to avoid tearing or built-up edge
- Tool condition — sharp inserts with no wear on the cutting edge
- Deburring — clean edges on turned and milled features
- Handling — parts handled and cleaned so the surface stays consistent
Deburring and stainless steel surface finishing were arranged according to the customer's drawing. No surface claim goes beyond what the drawing specifies.
7. Production Results
The combined turning and milling process supported production of 20,000 surgical instrument components per month while maintaining the required ±0.01 mm dimensional tolerance. In-process inspection helped keep dimensions consistent across production batches and supported reliable assembly.
| Metric | Result |
|---|---|
| Material | 316 Stainless Steel |
| Process | CNC Turning + Milling |
| Tolerance | ±0.01 mm |
| Monthly Volume | 20,000 pcs |
| Critical Features | Precise cylindrical features |
| Inspection Method | In-process inspection |
| Quality Result | Consistent dimensions across production batches |
| Surface Requirement | Clean surface finish |
This is high-volume surgical instrument component manufacturing — 20,000 medical components per month with dimensions that stay put.
8. What This Means for Your Surgical Instrument Project
This project demonstrates how CNC turning, milling, and in-process inspection can be combined to manufacture tight-tolerance stainless steel components for surgical instrument assemblies. For similar parts, early review of the drawing, critical dimensions, surface requirements, and monthly volume can help establish the right production process.
- Right for cylindrical and turned-milled components — the process fits parts with rotational and prismatic features
- Stable process control — tight dimensional tolerances held across the batch
- Batch consistency — the same part, batch after batch, at volume
- Inspection integrated into manufacturing — quality checked during production, not only at the end
- Surface quality per drawing — finishing controlled according to specifications
9. FAQ
Q: What material was used for this surgical instrument component?
A: The component was machined from 316 stainless steel.
Q: What tolerance was required?
A:The component required a dimensional tolerance of ±0.01 mm.
Q: Can you machine cylindrical surgical instrument components?
A: Yes. CNC turning can be used for cylindrical features, while milling can produce secondary geometries required for assembly.
Q: Can you combine CNC turning and milling in one production project?
A: Yes. Turning and milling can be coordinated according to the part geometry, datum structure, tolerance requirements, and production volume.
Q: How do you control dimensions during high-volume production?
A: We use in-process inspection to monitor critical dimensions and identify process variation during production.
Q: Can you provide a clean surface finish for stainless steel components?
A: Yes. Deburring, surface cleaning, and other finishing requirements can be arranged according to the customer's drawings and specifications.
Q: Need a Tight-Tolerance Stainless Steel Surgical Instrument Component?
A: Send us your drawings for a DFM review and production quotation. We will confirm material, tolerance, process, and surface requirements before you commit.
