1. What Is XRF Coating Thickness Measurement and Why It Matters

XRF coating thickness measurement is a non-destructive testing method. It uses X-ray fluorescence to measure the thickness of coatings on metal parts. The test takes seconds. The part is not damaged. And the result is accurate to ±0.1 μm in many cases.

For manufacturers who anodize, plate, or coat metal parts, XRF is the gold standard for quality verification. It tells you exactly how thick the coating is — without cutting the part open. This matters because coating thickness is the single most important variable in surface treatment quality.

XRF equipment brings laboratory-grade precision to the production floor, enabling real-time coating thickness verification without destroying the part.

1.1 The Principle of X-Ray Fluorescence (XRF) for Non-Destructive Testing

Here is how XRF works — in simple terms:

Step 1: Excitation. The XRF device sends a beam of primary X-rays at the part surface. These X-rays have enough energy to knock electrons out of the inner shells of the atoms in the coating material.

Step 2: Fluorescence. When an inner-shell electron is removed, an outer-shell electron drops in to fill the gap. This drop releases energy as a secondary X-ray — called a fluorescent X-ray. Each element releases X-rays at a unique energy level, like a fingerprint.

Step 3: Detection. The XRF detector reads the energy and intensity of the fluorescent X-rays. The energy tells you which elements are present. The intensity tells you how much of each element is there — and from that, the software calculates the coating thickness.

The whole process takes 10 to 60 seconds per measurement point. The part is not touched. No material is removed. The part can go back into production or be shipped to the customer after testing.

Feature	XRF Measurement	Destructive Cross-Section	Eddy Current
Method	X-ray fluorescence	Cut and polish, measure under microscope	Magnetic induction
Destructive?	No	Yes — part is destroyed	No
Accuracy	±0.1 μm	±0.5 μm	±1.0 μm
Measures multi-layer?	Yes — up to 5 layers	Yes (visually)	No — single layer only
Measures composition?	Yes — elemental analysis	No	No
Time per measurement	10–60 seconds	30–60 minutes (prep + measure)	2–5 seconds
Best for	High-precision, multi-layer, non-destructive	Lab verification, failure analysis	Quick field checks on single layers

1.2 Why Coating Thickness Directly Affects Product Performance

Coating thickness is not a cosmetic number. It controls real performance:

Performance Factor	What Happens If Coating Is Too Thin	What Happens If Coating Is Too Thick
Corrosion resistance	Fails salt spray test early	Not a problem (more is better here)
Wear resistance	Surface wears through quickly	Coating may crack under stress
Dimensional fit	Part may be too loose in assembly	Part will not fit — too tight
Electrical insulation	Breakdown voltage too low	Not a problem (up to a point)
Color uniformity	Color looks pale or inconsistent	Color may look too dark
Adhesion	Coating may peel	Thick coatings have higher internal stress — may flake

For example, a Type III hard anodized part specified at 50 μm must be between 45 and 55 μm. If it comes out at 35 μm, the wear resistance is 40% lower than specified. The part may fail in service. If it comes out at 65 μm, the part may not fit in the assembly bore. XRF catches both problems before the part ships.

"XRF is not a luxury. It is the difference between guessing and knowing. A shop that anodizes without XRF verification is shipping parts on faith. A shop with XRF ships parts on data. Which supplier would you trust with a 100,000-piece aerospace order?"
— Dr. Stefan Müller, Senior Materials Engineer, Fraunhofer Institute for Surface Engineering (IOT)

2. Anodizing Capabilities: Where Precision Coating Meets Surface Engineering

Our anodizing line processes aluminum parts through controlled electrochemical oxidation — converting the surface into a hard, durable oxide layer verified by XRF measurement.

Anodizing is an electrochemical process. It grows an aluminum oxide (Al₂O₃) layer from the base metal itself. The coating is not "applied" — it is "grown." This makes the bond between coating and substrate unbreakable. Unlike paint or plating, anodizing cannot peel off.

At DongGuan YiTai, we operate a full anodizing line with XRF verification on every batch. Here is what we can do:

2.1 Type II vs. Type III Anodizing: Thickness Ranges and Application Maps

Specification	Type II (Sulfuric Anodize)	Type III (Hard Coat Anodize)
Coating thickness	5–25 μm	25–100 μm
Hardness (HV)	200–300 HV	400–600 HV
Color options	Clear, black, red, blue, gold, green	Dark gray, black (dye-limited)
Salt spray resistance	200+ hours	500+ hours
Wear resistance	Good (indoor use)	Excellent (sliding surfaces, threads)
Dielectric strength	~25 V/μm	~25 V/μm (thicker = higher V)
Typical temperature	20–25°C bath	0–5°C bath (near freezing)
Current density	1.0–1.5 A/dm²	2.5–4.0 A/dm²
Best for	Consumer electronics, decorative parts	Wear surfaces, military, aerospace
XRF target thickness	±2 μm of spec	±5 μm of spec

2.2 Hard Coat Anodizing for Wear and Corrosion Critical Parts

Hard coat (Type III) is the toughest anodizing available. The oxide layer is 2x to 3x thicker than standard Type II. The hardness approaches that of tool steel. Parts with hard coat anodizing can survive:

500+ hours of salt spray (ASTM B117) without corrosion
10,000+ cycles of Taber abrasion test (CS-17 wheels, 1 kg load)
Surface temperatures up to 2,000°C for short exposure (the oxide melts at 2,072°C)
Dielectric breakdown at 1,500+ volts for a 50 μm coating

Anodized parts in various colors and thicknesses. XRF measurement verifies that each part meets the specified coating thickness — batch after batch.

But hard coat anodizing is harder to control. The bath must be cold (0–5°C). The current density is high. Small changes in bath chemistry, temperature, or agitation can shift the coating thickness by 10 μm or more. That is why XRF verification is essential for Type III anodizing. You cannot control what you do not measure.

3. XRF Equipment in Action: Our Quality Verification Process

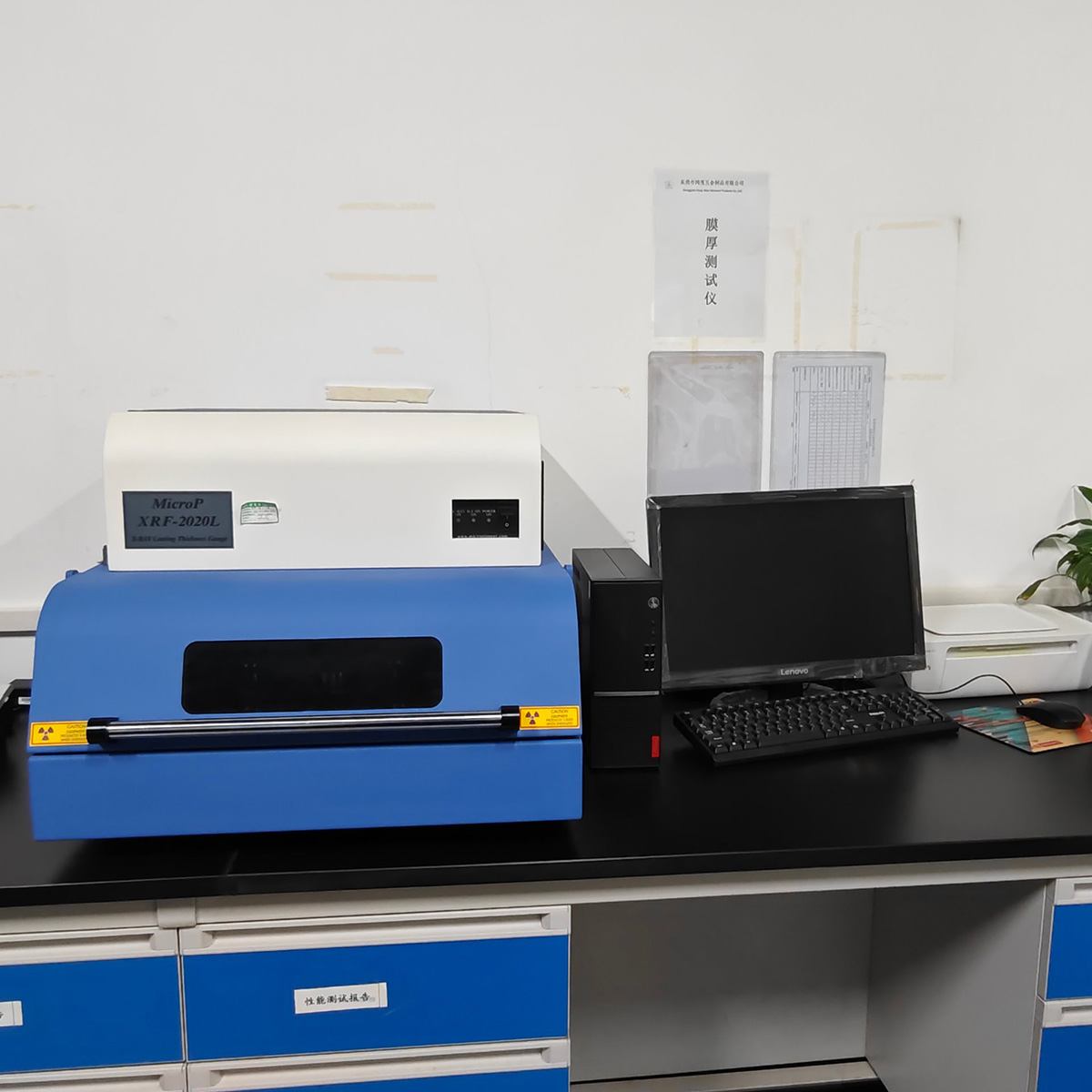

Our XRF equipment in operation — every anodized batch is measured at multiple points to verify thickness uniformity across the part surface.

3.1 Step-by-Step: From Anodizing Bath to XRF Verification

Step 1: Anodizing. Parts are racked and immersed in the anodizing bath. The current and time are controlled by our PLC system to target the specified thickness. Bath temperature, acid concentration, and aluminum content are logged every 2 hours.

Step 2: Racking and rinse. Parts come out of the bath. They are rinsed in DI water. If dyeing is required, parts go into the dye tank. Then they are sealed in hot DI water or nickel acetate seal.

Step 3: Visual inspection. Every part is inspected for color uniformity, surface defects, and seal quality. Parts with visible defects are set aside — no need for XRF if the part already failed visual.

Step 4: XRF measurement. We place 3 to 5 measurement points on each part (or on a sample from the batch). Points are chosen at:

The thinnest expected area (edges, low-current zones)
The thickest expected area (center, high-current zones)
The functional surface (where wear or corrosion matters most)

Step 5: Data recording. XRF results are saved in our quality database. Each measurement links to the batch number, rack position, and anodizing recipe. If a customer requests a coating thickness report, we export the data with full traceability.

Step 6: Pass or fail. If all measurement points are within specification, the batch is released. If any point is out of spec, the batch is held. We investigate the root cause (bath temperature drift? current density error? racking issue?) and rework or scrap as needed.

3.2 Calibration, Traceability, and Certified Reference Standards

XRF equipment is only as good as its calibration. An uncalibrated XRF gives you a number — but the number may be wrong. Here is how we keep our XRF trustworthy:

Calibration Activity	Frequency	Standard Used
Full recalibration	Every 6 months	NIST-traceable certified reference standards
Drift check (type standard)	Every shift (8 hours)	Known-thickness anodized coupon
Background check	Daily	Bare aluminum substrate (zero point)
Inter-laboratory comparison	Annually	Split samples sent to third-party lab
Software validation	After any update	Re-measure 10 known parts, compare to prior results

Every anodized batch gets a coating thickness report. XRF data is linked to the batch number, giving customers full traceability from raw material to finished part.

"The biggest mistake I see in anodizing shops is trusting the process without verifying the result. They set the current and time, pull the part out, and ship it. XRF tells you what actually happened — not what you think happened. The gap between those two things is where quality failures live."
— Patricia Chen, Quality Systems Auditor, SGS Taiwan (ISO 9001 / IATF 16949 Lead Auditor)

4. How DongGuan YiTai Combines Anodizing and XRF Testing for Zero-Defect Delivery

One Facility. Two Capabilities. Zero Guesswork.

Most shops either anodize or test. Few do both. At DongGuan YiTai Electronic Technologies, we operate an in-house anodizing line and XRF coating thickness measurement equipment. This means every part we anodize is verified by XRF before it ships. No outsourcing. No waiting. No guessing.

Our anodizing + XRF capabilities:

Type II anodizing: 5–25 μm, clear and dyed (black, red, blue, gold, green)
Type III hard coat: 25–100 μm, gray/black, 400–600 HV hardness
XRF measurement: ±0.1 μm accuracy, multi-layer capable, non-destructive
Salt spray testing: ASTM B117, up to 500 hours in-house
Calibration: NIST-traceable standards, drift check every shift
Batch traceability: Every measurement linked to batch number and anodizing recipe
Customer reports: Full coating thickness report with XRF data, available on request
Materials: Aluminum 6061, 6063, 7075, 5052, 2024, and cast alloys
Part size: Up to 600 × 400 × 300 mm

What this means for you:

No more "the anodizer says it is fine" — you get the XRF data
No more waiting weeks for a third-party lab report — XRF results are ready same day
No more coating thickness surprises in your assembly line — we catch out-of-spec parts before they ship
No more traceability gaps — every batch has a full quality trail

Need Anodizing with XRF-Verified Coating Thickness?

Send us your drawing and coating specification. We will anodize your parts and provide XRF measurement reports with every batch. Get a quote in 24 hours. Data, not guesses.

Request Your Anodizing + XRF Quote

5. Frequently Asked Questions

Q1: How does XRF measure anodizing thickness on aluminum?

Anodizing is an aluminum oxide (Al₂O₃) layer grown from the base aluminum. The XRF beam excites both the oxide layer and the base aluminum. The detector reads the oxygen signal from the oxide and the aluminum signal from the substrate. The software calculates the oxide thickness from the ratio of these signals. For most anodizing, the measurement range is 1 to 120 μm with accuracy of ±0.1 to ±0.5 μm depending on coating thickness and part geometry.

Q2: Can XRF measure multi-layer coatings like copper-nickel-chrome?

Yes. This is one of XRF's biggest advantages over other methods. XRF can measure up to 5 layers in a stack, as long as each layer has different elements. For example, on a copper-nickel-chrome plating on steel, XRF reads the chromium signal for the top layer, the nickel signal for the middle layer, and the copper signal for the base layer — all in one measurement. Eddy current and magnetic methods cannot do this. Cross-sectioning can, but it destroys the part.

Q3: How often should XRF equipment be calibrated?

Full recalibration should be done every 6 months using NIST-traceable certified reference standards. But more importantly, a drift check should be run every shift (8 hours) using a known-thickness coupon. Drift checks catch shifts caused by temperature changes, detector aging, or software updates. If the drift check shows more than 2% deviation from the known value, stop production and recalibrate before measuring any production parts.

Q4: What is the difference between Type II and Type III anodizing in terms of XRF measurement?

Type II (5–25 μm) is easier to measure by XRF because the oxide layer is thin and the aluminum signal from the substrate is strong. Type III (25–100 μm) is harder to measure because the thick oxide absorbs more of the fluorescent X-rays. For Type III above 50 μm, XRF accuracy drops to ±1 to ±2 μm. For very thick hard coats (75+ μm), we recommend cross-checking with eddy current or destructive cross-sectioning on a sample part to verify the XRF reading.

Q5: Do you provide coating thickness reports with each shipment?

Yes. Every anodized batch ships with a coating thickness report that includes: batch number, part number, anodizing specification (Type II or III), target thickness, XRF measured thickness at 3–5 points, measurement date, operator ID, and equipment calibration status. For aerospace and military customers, we can provide full PPAP-level documentation including process capability (Cpk) data. Just tell us your documentation requirements when you place the order.
