Beyond Traditional Cutting: How to Decide When Your Precision Part Should Switch to EDM and Work with CNC Machining
1. Physical Limits of CNC Cutting and Where EDM Steps In
CNC cutting uses a rotating tool. The tool must be smaller than the feature it cuts. It must also reach deep without rubbing. EDM has no tool. It uses a shaped electrode (sinker EDM) or a thin wire (wire EDM). It cuts where a tool cannot go.
Tool Accessibility – Deep Cavities, Small Deep Holes, Sharp Corners
A milling cutter has a limited length‑to‑diameter ratio. A 6mm end mill can safely cut about 30mm deep (5:1 ratio). Deeper than that, the tool bends and chatters. A sharp internal corner (like a square pocket) needs a small end mill, which is weak. EDM makes sharp internal corners because the electrode is the exact shape. Wire EDM can cut deep narrow slots with a wire that is only 0.1‑0.3mm thick.
-
When to use EDM: Your part has a deep narrow slot, a square internal corner with radius under 0.5mm, or a hole deeper than 10 times its diameter.
Material Hardness Limit – Hardened Steel (>60 HRC) and Carbide
Standard carbide tools can cut steel up to about 55 HRC. Above 60 HRC, tool wear becomes severe. Cutting hardened steel or tungsten carbide is very slow. EDM does not care about hardness. It erodes any conductive material, regardless of how hard it is.
-
When to use EDM: Your part is already hardened (like a die or mold) or made of carbide.
Thin Walls and Micro Features – No Cutting Force, No Distortion
A thin wall (under 1mm) bends when a milling cutter touches it. The cutter pushes the wall away. The cut is inaccurate. EDM applies almost no force. A thin wall or a tiny feature stays in place.
-
When to use EDM: Your part has walls under 0.5mm, or fine features like small slots or holes under 0.5mm diameter.
The table below compares CNC milling and EDM on key limits.
| Feature | CNC Milling | EDM (Wire or Sinker) |
|---|---|---|
| Maximum material hardness | ~55 HRC (carbide tools) | Any (no limit) |
| Smallest internal radius | ~0.3‑0.5mm (wear on tool) | 0.1mm or less |
| Deep hole (L/D ratio) | Up to 5:1 with end mill | >20:1 (wire EDM) |
| Thin wall thickness | >0.8mm (risk of bending) | <0.1mm (stable) |
| Cutting force | High (causes deflection) | Negligible |
2. The Cost and Lead Time Trade‑off
EDM is slower than high‑speed milling. But it can save cost by reducing setups and special tools.
EDM Is Slower per Cubic mm, But Eliminates Multiple Setups and Special Tools
Removing a large volume of material by EDM is very slow. That is why you never rough with EDM. However, for a complex internal cavity that would need five different tools and two setups on a mill, EDM might do it in one setup with one electrode. The cost of programming, tooling, and handling may outweigh the slow erosion time.
Electrode Manufacturing and Wire Time – How to Amortize per Part
Sinker EDM needs a graphite or copper electrode. Making the electrode adds time and cost. For one part, that is expensive. For 100 identical parts, the electrode cost spreads out. Wire EDM does not need a custom electrode – it uses standard wire. But wire EDM is slower for thick parts.
-
Rule of thumb: For complex 3D cavities, use sinker EDM for 5+ parts. For 2D profiles or through holes, use wire EDM for any quantity.
The table below gives a cost comparison.
| Factor | CNC Milling | Sinker EDM | Wire EDM |
|---|---|---|---|
| Material removal rate | Fast (100‑500 mm³/min) | Slow (10‑50 mm³/min) | Very slow (5‑20 mm³/min) |
| Setup time | Medium | High (electrode making) | Low (thread wire) |
| Tooling cost per batch | Low (standard tools) | Medium (electrode) | Low (wire) |
| Best batch size | Any | 5+ parts | 1+ parts |
3. Best Hybrid Process Chains – CNC Roughing + EDM Finishing
The most economical way is to use both. CNC removes the bulk. EDM does only what CNC cannot.
CNC Roughing Removes Most Stock, EDM Finishes Critical Features
For a mold cavity with deep narrow slots and sharp corners:
-
CNC rough mill the cavity to within 0.5mm of final shape.
-
EDM sinker with an electrode to finish the sharp corners, deep ribs, and small details.
-
No need to buy tiny end mills. No risk of breaking tools.
Mold Industry Example – High‑Speed Milling for the Main Body, EDM for Cleaning Corners
Mold makers use this every day. The main cavity is milled with a large ball end mill. The sharp inside corners (where the plastic part would have a square edge) are impossible to mill. They use EDM to burn those corners clean. This gives a perfect mold at lower cost than milling everything.
Hard Material Example – Wire EDM for Gear Teeth After Heat Treat
A gear made of 17‑4PH stainless is machined soft, then hardened to 45 HRC. Cutting the gear teeth after hardening is very hard. Instead, rough machine the gear blank, harden it, then wire EDM the teeth. The wire cuts the hard teeth accurately with no distortion.
4. Expert Insight: EDM Is Not a Last Resort, It Is a Strategy
“Many machinists think EDM is only for things that cannot be milled. That is wrong. I plan EDM into the process from the start. For a hardened tool steel part, rough milling then wire EDM the final contour is faster and more accurate than trying to mill the hard material with expensive CBN tools. The electrode cost is planned into the batch. The result is a burr‑free, sharp corner every time. Think of EDM as a partner to milling, not a backup.”
— Senior Process Engineer, DongGuan YiTai Electronic Technologies
Our Engineering Team Helps You Plan the Best Path from CNC to EDM
At DongGuan YiTai Electronic Technologies , we have both CNC mills and EDM machines (wire and sinker). We look at your part geometry, material, quantity, and tolerance. Then we design a hybrid process that balances cost and precision.
Send us your drawing. We will recommend whether to cut, burn, or both. You get a single quote and one point of contact.
5. Frequently Asked Questions (FAQ)
Q: What is the difference between wire EDM and sinker EDM?

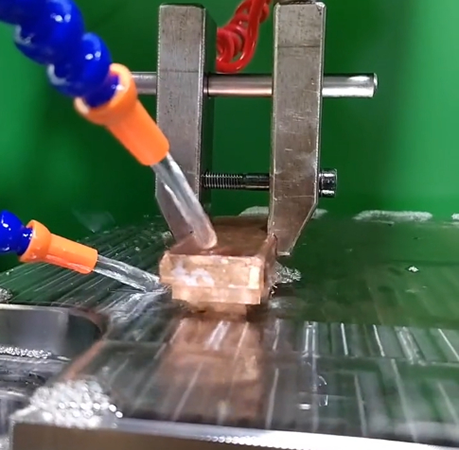

A: Wire EDM uses a thin wire that cuts through the part like a bandsaw. It is for through holes and external profiles. Sinker EDM uses a shaped electrode that burns a cavity into the part. It is for blind holes, sharp corners, and complex 3D shapes.
Q: Is EDM accurate?
A: Yes. Wire EDM can hold ±0.002mm (2 microns). Sinker EDM can hold ±0.005mm. This is comparable to or better than CNC milling.
Q: Does EDM leave a rough surface?
A: The rough cut leaves a matte surface (Ra 1‑3µm). But you can do a skim cut with lower power to get Ra 0.2‑0.4µm. For mirror finish, you need polishing after EDM.
Q: Can EDM cut non‑conductive materials like ceramic or plastic?
A: No. EDM only works on conductive materials (metals, graphite, some composites). For non‑conductors, use laser or waterjet.
Q: When should I avoid EDM?
A: Avoid EDM for very large volumes of simple shapes (milling is faster). Also avoid if your material is conductive but has low melting point (like aluminum – EDM is slow on aluminum because it melts and sticks). For aluminum, milling is almost always better.
Q: Does DongGuan YiTai Electronic Technologies offer EDM services?
A: Yes. We have wire EDM for precision profiles and sinker EDM for mold cavities. We also help you decide when to use EDM versus CNC. Contact us with your part requirements.
