Breaking Limits: How MIM Achieves ±0.3% Precision for Complex Small Parts

author: YITECH

2025-12-08

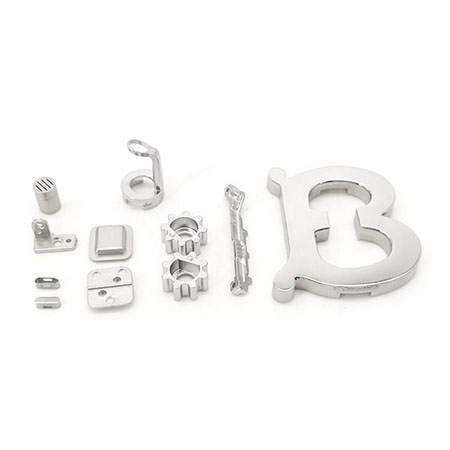

Metal Injection Molding (MIM) is changing how we make small, complex metal parts. It pushes past the limits of older methods. This process combines the design freedom of plastic injection molding with the strength of metal.

Table of Contents

Core Advantages of MIM: "Freeform Fabrication" of Complex Geometries
How Yitai Electronics Controls Sintering Deformation in MIM?
‬When MIM Meets CNC: The "Combination" for Ultimate Precision
Typical Case: Mass Production of Micro Gears Under 5mm in Diameter
Get Your Precision Part MIM Assessment Report
Frequently Asked Questions (FAQ)

1. Core Advantages of MIM: "Freeform Fabrication" of Complex Geometries

MIM stands out because it can form complex shapes in a single step. Traditional processes often require multiple steps or are incapable of producing certain specific features.

Solving Internal Undercuts and Enclosed Cavities That Traditional CNC Cannot Machine

CNC machining shapes parts by removing material from a solid block. This poses a challenge for components with internal undercuts or enclosed cavities, as cutting tools simply cannot access these areas. MIM technology, however, faces no such limitation. The mixture of metal powder and binder fills the entire mold cavity, allowing these complex internal features to be formed directly during molding. This eliminates the need for complicated multi-part assemblies.

Achieving Finer Surface Finish Compared to Precision Casting

Precision casting is another method for creating complex shapes, but MIM typically delivers a much finer surface quality. The MIM process utilizes extremely fine metal powders and high-precision molds, resulting in smoother surfaces right after sintering. The surface roughness (Ra) can often reach 1–2 microns or better, whereas cast parts usually require more secondary finishing to achieve a similar level of smoothness.

Comparative Parameters Table: MIM vs. Traditional Processes

Feature	Metal Injection Molding (MIM)	CNC Machining	Precision Casting
Shape Complexity	Very High (undercuts, thin walls)	Limited by tool access	High
Typical Precision	±0.3% to ±0.5%	Very High (±0.1%)	±0.5% to ±2%
Surface Finish (Ra)	1-2 µm (often better)	0.4-1.6 µm (after machining)	3-6 µm (as-cast)
Ideal Part Size	Small (< 100g common)	Wide range	Small to Large
Material Efficiency	High (near-net-shape)	Low (material removed)	Medium

2. How Yitai Electronics Controls MIM Sintering Deformation?

Sintering is a critical step. The part shrinks and can warp. Controlling this is key to hitting the ±0.3% precision target. Yitai Electronics focuses on two main control points.

Stability Control of Feedstock Formula

The feedstock is the uniform mixture of metal powder and binder. Its consistency is everything. Any variation in powder size, binder ratio, or mixing can cause uneven shrinkage. Yitai uses strict powder inspection and mixing procedures. This ensures every batch of feedstock behaves the same way during molding and sintering. As one process expert notes: "Controlling feedstock is like controlling the recipe for a cake. You must measure every ingredient precisely every time to get the same perfect result."

Application of Ceramic Setting Fixtures in Sintering

During the sintering process, parts soften before densification. To prevent slumping or warping, the parts are typically placed on or within ceramic setting fixtures. These fixtures provide physical support, maintaining the correct shape of the parts as they shrink. The design of such fixtures requires advanced simulation techniques and accumulated experience, especially for flat or thin-walled elongated parts, where they have become a critical tool for ensuring dimensional accuracy.

3. When MIM Meets CNC: The "Combination" for Ultimate Precision

MIM is excellent for complex geometry. But for ultimate precision on specific features, combining MIM with CNC machining is the best approach.

Why Do Critical Dimensions Need Secondary CNC Machining?

The MIM process is very consistent. But it is still a thermal process with uniform shrinkage. Some features need accuracy beyond standard MIM tolerance. Examples include precision thread holes, ultra-sharp edges, or critical mating surfaces with tolerances under ±0.05 mm. For these, the MIM part is made "near-net-shape." Then, CNC machining precisely finishes only those key areas. This "combination" gives the best of both worlds: complex shape capability from MIM and ultra-precision from CNC.

4. Typical Case: Mass Production of Micro Gears Under 5mm in Diameter

A perfect example is a micro gear with a diameter under 5mm. This gear has tiny, precise teeth and a central bore. Using CNC to make this from solid material is very slow and wastes material. Precision casting might not achieve the required tooth detail and strength. MIM is the ideal choice. It molds the complete gear shape, including all teeth, in one second. The sintering process ensures full metal density and strength. Finally, the central bore might be finished with a quick CNC step for perfect size and roundness. This method allows for high-volume, cost-effective production of these challenging parts.

5. Get Your Precision Part MIM Assessment Report

Do you have a complex, small metal part? Are you facing challenges with cost, waste, or manufacturability? MIM might be your solution. Yitai Electronics offers a free Precision Part MIM Assessment Report. Our engineers will analyze your design. They will check for material suitability, potential cost savings, and precision feasibility. Contact us today to start the assessment.

6. Frequently Asked Questions (FAQ)

Q: What materials can be used in MIM?
A: Many materials can be used. Common ones include stainless steels (like 316L, 17-4PH), low-alloy steels, tool steels, and special alloys like titanium or tungsten. The material must be available as a fine, spherical powder.

Q: Is MIM cheaper than CNC machining?
A: For high volumes of complex small parts, yes, MIM is often more cost-effective. CNC cost is mostly in machine time, which stays high per part. MIM has higher initial tooling costs, but the per-part cost drops significantly with volume because the molding cycle is very fast.

Q: What are the main design limits for MIM?
A: Parts should ideally be small (under 200g). Very thick wall sections (over 25mm) can cause defects. Also, while MIM is good, it cannot hold tolerances as tight as grinding or honing on a single feature without secondary machining.

Q: How strong are MIM parts?
A: After full densification in sintering, MIM parts achieve 96-99%+ of the wrought material's density. So, their mechanical properties (like strength and hardness) are very close to those of traditional metals.
