What you must know about Metal powder Coating--Parts2

author: YITECH

2025-01-17

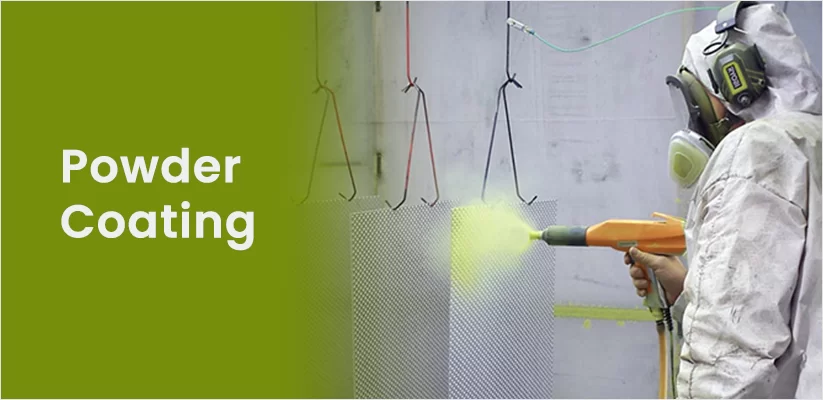

Our precision powder coating service provides unmatched quality and durability, ensuring seamless finishes that are resistant to fading, chipping, and corrosion, and that will meet the exact specifications and demands of even the most challenging projects.

Metal powder coatings refer to various powder coatings containing metal pigments. Because metal powder coating can show bright, light luxury decorative effect, it is very suitable for furniture, jewelry and cars and other indoor and outdoor objects. In the manufacturing process, the current domestic market mainly uses the dry mixing method, and the international bond fixing method is also used.
Commonly used metal pigments are: aluminum silver powder pigments, pearlescent pigments, copper and gold powder pigments. The products made of different colors greatly enrich the types and decoration of powder coatings.

Part.1

The thickness of aluminum powder particle size in aluminum silver powder shows different functions, which can be divided into different grades from 5um to 75um, and aluminum pigments with different particle sizes have different brightness, flicker and hiding power. Its advantage is that the metal texture is strong, the material is easy to obtain, but the color is single, and the chemical resistance is poor. Pearlescent pigment is inorganic pigment, its advantage is that pearlescent pink is more than good chemical resistance, the disadvantage is that the metal texture is not strong. Copper gold powder pigment is copper zinc alloy as the material, through special mechanical processing and external chemical treatment to produce a scaly structure, can float in the bonding, showing gold luster, with pigment properties of a metal pigment. The advantage of copper powder is that it is more pink than copper and has a strong sense of metal, but its disadvantages are poor chemical resistance, heavy ratio, large dosage, poor temperature resistance and weather resistance.

Part.2

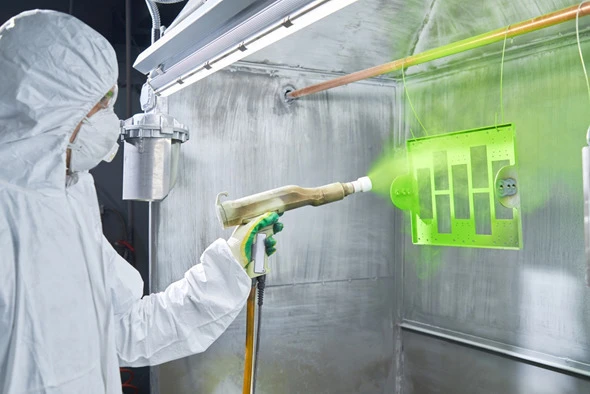

As we all know, in the process of metal powder spraying, the powder coating is transported to the spray gun after fluidization through the air stream, the spray gun through the high voltage electrostatic generator, the electrode needle in the nozzle produces corona discharge, and produces a dense negative charge near the electrode. When the powder is sprayed from the gun head, the charge is captured as a charged powder, which flies to the grounded workpiece under the action of the air stream, electric field and its own gravity. And adsorbed on the surface of the substrate. Therefore, in our spraying process, we need to take adequate preventive measures.

Coating method for metal powder coatings

In most cases, electrostatic spray gun is used for painting, because the product contains metal pigments, in the use of electrostatic gun construction should ensure that the system is well grounded, set a low electrostatic voltage and powder output, to prevent the occurrence of ignition phenomenon during spraying. After long-term spraying, there may be a lot of metal powder accumulation in the discharge needle of the spray gun, requiring the construction worker to arrange the discharge needle regularly.

Metallic powder coating for luster

In most cases, because of the large error, it is not recommended to use the gloss meter to measure the gloss of the metal appearance film, and only use the visual comparison method to determine whether it is the same as the standard template.

Retrievability of metal powder coatings

For the powder made by the dry mixing method, because the separation phenomenon will occur during the spraying and recycling process, there will be a certain difference in the metal pigment content of the recovered powder and the new powder, which may lead to the different appearance of the coating film and the color bias phenomenon. This is due to the different properties between metallic pigments and powder particles. If a powder coating made by the adhesive fixation method is used, because the ratio between the metal pigment and the powder particles is relatively fixed, it is completely possible to recover the powder from scratch.

Metal powder coating

The following advantages can be obtained by spraying the coating layer on the metal powder film: the anti-stoning function of the metal powder film is enhanced; The aesthetic effect of adding metal powder coating; Thoroughly treat the erasability of metal pigments; Improve the weather resistance of metal powder coating. In order to ensure the appearance of the mask layer, it is required that the workpiece sprayed for the first time cannot be contaminated. Therefore, there is a general need for a fully automated spray line and two sets of independent spray rooms for separate painting. In general, do not spray the coating. Only use when the requirements are very high, such as: advanced home appliances, car wheels and field use (to ensure weather resistance).

Erasability of metallic pigments

No matter the powder made by dry mixing method or adhesive fixing method, the erasability problem of metal pigments can not be completely solved. The only way to deal with erasability is to apply a clear coating to the metal powder coating.
