What you must know about Metal powder Coatings!
author: YITECH
2025-01-15
What You Must Know About Metal Powder Coatings: A Comprehensive Guide
About metal powder coatings
Metal powder coatings are more and more popular in the market. Favorite metallic powders are silver, gold and copper. This tendency began in the automobile industry and is now prevailing in other industries as well. Among these metallic colors, silver is particularly popular with customers.
The same is true of metal powder coatings, which account for an increasing share of the market. Many powder coating manufacturers are also seeing this trend. Metal powder coating is the addition of metal pigment in the base powder to bring metal effect to the appearance, and has a good decorative function.
With the national environmental protection laws and regulations becoming more and more strict, more and more liquid metal paint is forced to turn to powder paint. However, in order to produce high quality and stable function of metal powder coatings, there is a need for certain technology and experience. From the overall technical consideration, including raw material selection, laboratory proofing, production process and quality control, but also do a good job of safety.
Raw material selection must have a deeper understanding of the function of different types and different suppliers of metal pigments, in order to use the appropriate metal pigments just right.
According to the requirements of powder coating to select different metal pigments, commonly used metal pigments are: aluminum silver powder pigments, pearlescent pigments, copper and gold powder pigments. Metal pigments have many hue products, which greatly enrich the type and decoration of powder coatings.
According to the requirements of powder coating to select different metal pigments, commonly used metal pigments are: aluminum silver powder pigments, pearlescent pigments, copper and gold powder pigments. Metal pigments have many hue products, which greatly enrich the type and decoration of powder coatings.
Aluminum silver powder Aluminum powder has a floating type, easy to float to the surface, only stearic acid surface treatment, not weather resistant. This kind of fine aluminum powder is used to make mirror silver, and the appearance should be glazed with bright powder. Uncoated aluminum pigments are used to mimic chromium and mirror silver, and do not have corrosion resistance, so it is necessary to choose a clear mask coating. Because such pigments may oxidize even under the protection of transparent coatings, they cannot be used to build exterior wall coatings.
In addition, there are non-floating and ultra-high function aluminum silver powder, and the coating types of different aluminum silver powder are listed.
The thickness of the aluminum powder particle size shows different functions, from 5um to 75um can be distributed in a number of grades, different particle sizes of aluminum pigments have different brightness, flicker, Angle with different colors and hiding power.
The advantage of aluminum silver powder is that the metal texture is strong and the material is simple to obtain. The disadvantage is that the color is single and the chemical resistance is not good.
Precautions for use
1. Coating method of metal powder coating

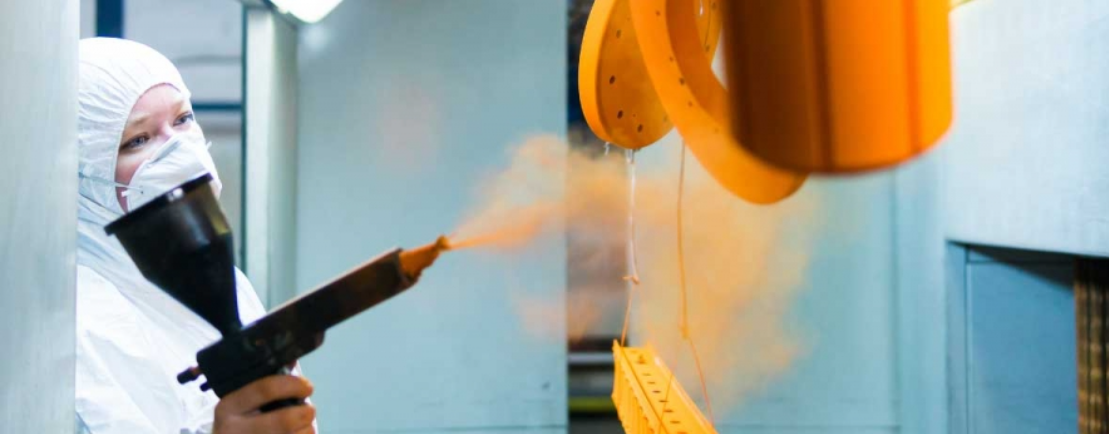

In most cases, electrostatic spray gun is used for painting, because this type of product contains metal pigments, in the use of electrostatic gun construction should ensure the excellent grounding of the system, and set a low electrostatic voltage and powder output, to avoid the occurrence of flaring phenomenon during spraying. The role of the coating is very much related to the setting, quality or brand of the spray gun. After spraying for a long time, there may be a lot of metal powder accumulation in the spray gun discharge needle, requiring the construction worker to be punctual to clean up the discharge needle.
2. The luster of metal powder coating
In most cases, due to large errors, it is not recommended to use gloss meter to measure the gloss of metal appearance film, and only use visual comparison method to determine whether it is the same as the standard template.
3. Recyclability of metal powder coating
As for the powder made by the dry mixing method, due to the separation phenomenon during the spraying and recycling process, there will be certain differences in the content of metal pigments between the recovered powder and the new powder, which may lead to different appearance of the coating film and a color bias phenomenon. This is due to the difference in properties between metallic pigments and powder particles. Experts advocate that the ratio of recycled powder to new powder should be at least 1:4. If the powder coating made by the adhesive fixation method is relatively fixed, the ratio between the metal pigment and the powder particles can be completely recycled from scratch.
4. Cover layer of metal powder coating
The application of the coating layer on the metal powder film has the following benefits: it enhances the rock impact resistance of the metal powder film; The beautiful effect of adding metal powder coating; Thoroughly treat the erasability of metal pigments; Weather resistance of advanced metal powder coatings. In order to ensure the appearance of the mask layer, it is required that the workpiece sprayed for the first time cannot be contaminated. Therefore, there is a general need for a fully automated spray line and two sets of independent spray rooms for separate painting. Do not spray the coating under normal circumstances. It only needs to be used when the requirements are very high, such as: high-end home appliances, car wheels and field use (to ensure weather resistance).
5. Erasability of metal pigments
No matter the powder made by dry mixing method or adhesive fixing method, the erasability problem of metal pigments can not be completely solved. The only way to deal with erasability is to spray a clear coating on the metal powder coating.
6. Adhere to the method of metal powder coating appearance together
(1) For the same product, try to use the same batch of metal powder coating to avoid the problem of difference between powder coating batches.
(2) Try to adhere to the stability of spraying conditions. Use the same set of spraying equipment, use the same voltage, pressure and other parameters; Try to adhere to the same distance between the spray gun and the workpiece, and try to adhere to the stability of the film thickness; Ensure that the powder coating is fully fluidized before spraying; When using recycled powder, ensure that the ratio of recycled powder to new powder is at least 1:4; Try to avoid using metal powder coating to spray the workpiece with messy shape or deep depression; It is advocated that multiple workpieces to be assembled together should be sprayed together.
