Introduction of Automatic lathe

author: YITECH

2025-03-18

Revolutionizing precision manufacturing, the integration of lathe auto technology is setting new standards for efficiency, accuracy, and productivity in industrial applications worldwide.

Automatic lathe is a high-performance, high-precision, low-noise automatic lathe with a knife-feeding function. It is an automatic processing machine tool that controls the processing program through a cam. In addition, there are some CNC automatic lathes, pneumatic automatic lathes and Swiss automatic lathes. The basic core is that they can automatically process the same product for a long time after certain settings and adjustments.

It is suitable for the processing and manufacturing of precision parts such as copper, aluminum, iron, and plastic. It is suitable for batch processing of small parts, especially more complex parts, in industries such as instruments, clocks, automobiles, motorcycles, bicycles, glasses, stationery, hardware and sanitary ware, electronic parts, connectors, computers, mobile phones, electromechanical, and military industries.

Chinese name: 自动车床

English name: Automatic lathe

Features High performance, high precision, and low noise Application areas Instruments, clocks, automobiles, motorcycles, etc.

1. Swiss processing process:

The processing material is clamped by a simple clamp, the material moves forward, and the tool does not move, and the parts are processed by the linear motion or swinging motion of the tool.

2. The tool-feeding process

The workpiece is clamped with a simple clamp and the workpiece is processed by moving the turning tool forward, backward, left and right.

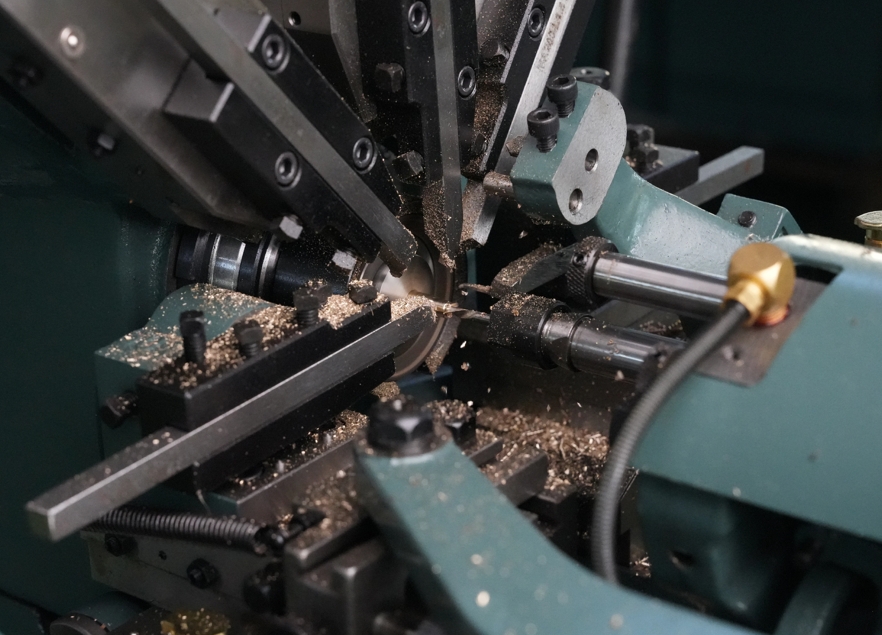

3. The tool-feeding cam automatic lathe is equipped with 5 tools

The tool holders are No. 1, No. 2, No. 3, No. 4, and No. 5 in order. Each tool holder can be equipped with 1-2 tools. No. 1 and No. 5 are used for turning the outer diameter, and No. 2, 3, and 4 are mainly used for grooving, chamfering, and cutting. 2 tail shafts, 2 drills, 1 tap, and 1 die are used for cutting at the same time, and tapping, milling, die, embossing, and other processes can be performed at the same time. Without manual operation, complex parts can be turned on the outer circle, spherical surface, conical surface, arc surface, step, grooving, embossing, drilling, tapping, die, cutting, and other processes simultaneously, and the whole process can be completed by one processing.

4. High dimensional control accuracy

The spindle precision of the machine tool can reach 0.003mm, the slider fine adjustment is controlled by a micrometer, the dimensional control accuracy can reach 0.005mm, and the spindle speed is within 2000-8000RPM. The minimum cutting feed can be controlled to 0.005, and the roughness of the parts (copper parts) can reach Ra0.04-0.08.

5. Automatic feeding

The feeding mechanism automatically feeds the material to the spindle, and the machine stops and alarms automatically when the material is finished. The processing process does not require manual inspection, achieving a fully automated production and manufacturing process. One operator can operate multiple machines at the same time.

6. High production efficiency

This machine tool controls the processing process through a cam, and a processing process is completed for each rotation of the cam. The cam speed is 1.0-36 rpm, which can be adjusted according to different processing parts. About 30 parts can be processed per minute. Since 5 knives can be used for cutting at the same time, the processing efficiency is very high, which is unmatched by general CNC lathes and instrument lathes.
