Table of Contents

1. What is Grooving Machining?

2. How Grooving Machining Works

3. Tools Used in Grooving

4. Types of Grooving Machines

5. Key Grooving Techniques

6. Materials for Grooving

7. Applications of Grooving

8. Expert Opinions

9. Grooving vs. Other Processes: A Comparison

10. Frequently Asked Questions

1. What is Grooving Machining?

Grooving machining is a manufacturing process that creates narrow cavities, slots, or channels on a workpiece. These features are known as grooves. Grooves serve many purposes. They can hold seals like O-rings, allow parts to seat correctly, or facilitate chip removal in other machining operations.

2. How Grooving Machining Works

The grooving process involves a rotating workpiece or a rotating cutting tool. In turning, a single-point cutting tool moves radially into the rotating workpiece to cut a groove. In milling, a rotating multi-toothed cutter moves into the stationary workpiece.

One key principle in machining is generating motion. This is when the tool and workpiece move in a precise relationship to create a shape. For example, in gear hobbing, which is a type of grooving, the cutter (hob) and workpiece (gear blank) rotate in a coordinated way to generate the gear teeth . The continuous rotation of the hob is like an infinitely long rack moving past the gear blank, forming the precise involute tooth profile .

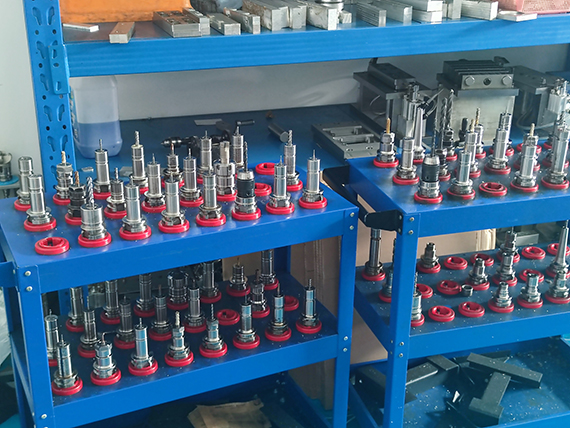

3. Tools Used in Grooving

The right tool is critical for successful grooving. Common tools include:

• Grooving Inserts and Tool Holders: These are indexable inserts made of hard materials like tungsten carbide . They are known for high hardness and wear resistance . Different insert geometries are used for various groove shapes (square, round, etc.).

• Parting and Grooving Tools: Used for both creating grooves and cutting off a part from the main stock.

• Groove Milling Cutters: These are used for milling grooves and can be solid or with indexable inserts. For small internal diameters, solid carbide cutters might be used, while indexable cutters are more economical for larger diameters .

4. Types of Grooving Machines

Different machines can perform grooving, each suited for specific tasks.

• Lathes and Turning Centers: Ideal for grooving cylindrical parts like shafts and pistons. The part rotates, and the tool moves inwards to cut the groove.

• Milling Machines: Used for grooving flat surfaces or complex contours. CNC Milling machines offer high precision and flexibility for complex parts .

• Specialized Machines:

  • Gear Hobbing Machines: Use a hob to cut gear teeth, which are essentially radial grooves .

  • Gantry Milling Machine: These are large, rigid machines with a bridge-like structure. They are excellent for machining large workpieces, like those found in the aerospace industry .

5. Key Grooving Techniques

Several techniques improve grooving efficiency and quality.

• Face Grooving: Machining grooves on the face of a part.

• Internal Grooving (ID Grooving): Cutting grooves on the inside diameter of a bore.

• Plunge Turning: A grooving tool is plunged directly into the rotating part. Using radial can save time compared to axial approaches .

• High-Speed Grooving: Using advanced materials and machines to run at much higher cutting speeds, which can boost productivity by 25% or more .

• Axial Shift and Diagonal Grooving: Moving the tool axially to distribute wear evenly across its cutting edges, which increases tool life .

6. Materials for Grooving

Grooving can be performed on a wide range of materials:

• Ferrous Metals: This includes various steels (from low carbon to hardened alloy steels) and cast iron .

• Stainless Steels: Such as austenitic, duplex, and high-strength varieties .

• High-Temperature Alloys: Nickel-based, cobalt-based, and iron-based superalloys, as well as titanium alloys .

• Non-Ferrous Materials: Aluminum alloys, copper, brass, and plastics .

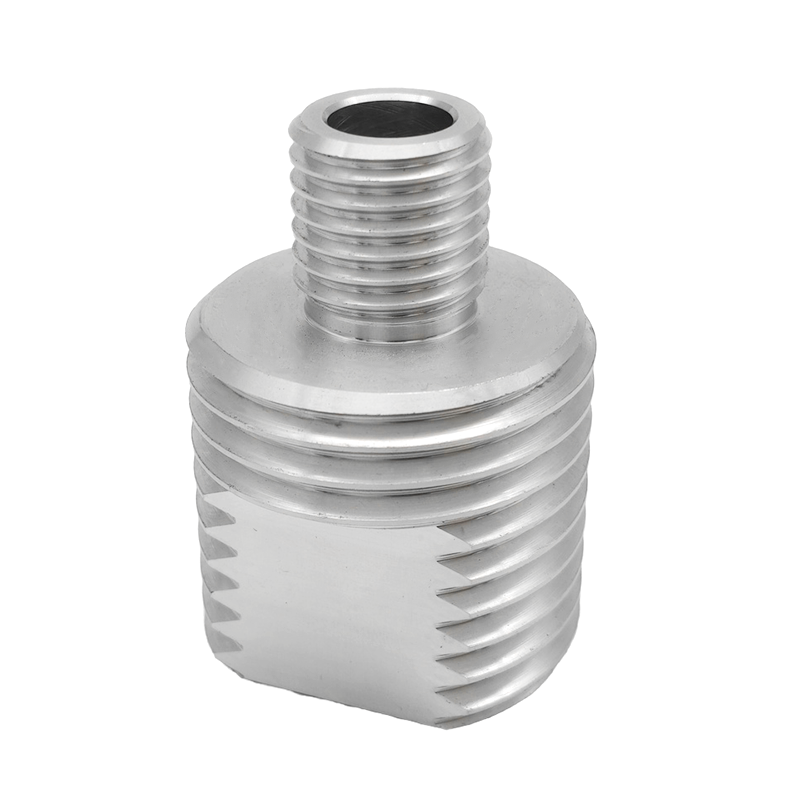

7. Applications of Grooving

Grooving is a vital process across many industries. It is used to create precise features that are essential for the function and assembly of mechanical components.

In the automotive industry, grooving is very common. It is used to manufacture many critical parts. For example, grooving creates piston ring grooves on engine pistons. These grooves hold the piston rings which seal the combustion chamber. Grooving is also used to make snap ring grooves on shafts. These grooves hold retaining rings that keep bearings or other parts in place. Additionally, O-ring grooves are machined onto hydraulic cylinder rods and other components to prevent fluid leaks. Transmission shafts also have grooves for splines and gears. These processes are often done on CNC lathes for high accuracy and speed.

The aerospace industry relies on grooving for high-precision components. These parts must work reliably under extreme conditions. Grooving is used to make turbine engine components, such as discs and shafts that have complex cooling channels and sealing grooves. These grooves must handle very high temperatures and stresses. The materials used, like nickel-based superalloys and titanium, are often very hard to machine. Therefore, specialized tools and advanced CNC machines, including 5-axis milling centers and large gantry milling machines, are used. These machines provide the rigidity and precision needed for these difficult materials and tight tolerances.

In general machinery and industrial equipment, grooving has many uses. It is essential for making parts for pumps, valves, and hydraulic systems. For instance, valves have internal grooves for seals that control the flow of liquids or gases. Pump shafts have grooves for mechanical seals and bearings. Hydraulic cylinders have grooves on both the piston and the rod for different types of seals. Furthermore, keyways are a common type of groove. They are cut into shafts and hubs using a milling machine or a broach. The keyway holds a key that connects parts together, like a gear to a shaft, so they rotate together. Another application is creating oil grooves on bearing surfaces. These grooves help distribute lubricant evenly, which reduces friction and wear, and extends the life of the machine.

8. Expert Opinions

Industry experts offer valuable insights:

• On Tool Selection: "If you can groove on a lathe, you should do it. In almost every case, milling a groove will take more time than turning the same groove," says Matthew Schmitz, Iscar's GRIP Product Manager .

• On Chip Control: "Slot milling is an intermittent cutting process, and the chips are usually broken into short pieces that are easy to handle. Grooving turning is a continuous cutting process, which will form long chips that are not easy to handle," highlighting a key difference between the two processes .

• On Precision: "Grooving turning uses a single-point cutting tool, so its machining accuracy is higher than that of groove milling," adds Schmitz .

9. Grooving vs. Other Processes: A Comparison

The table below compares key aspects of grooving on different machines.

10. Frequently Asked Questions

Q1: What is the main difference between grooving turning and groove milling?
A: The main difference is the motion. In grooving turning, the workpiece rotates and a single-point tool moves in. In groove milling, the cutter rotates and moves into a stationary workpiece. Turning is often faster and more accurate for cylindrical parts, while milling is more flexible for complex shapes .

Q2: How can I improve tool life in grooving operations?
A: You can use techniques like axial shift and diagonal grooving to distribute wear evenly across the tool's cutting edges . Also, choose the correct tool material (like tungsten carbide for hard materials ) and use adequate coolant.

Q3: What causes vibration (chatter) during grooving, and how can I reduce it?
A: Vibration can be caused by loose machine guides, insufficient rigidity of the tool or workpiece, or excessive cutting parameters . To reduce it, tighten the machine's guide rails, improve the clamping of the tool and workpiece, and adjust the cutting speed and feed rate .

Q4: Why does my grooving tool break unexpectedly?
A: Tool breakage can happen if the tool is not strong enough for the cut, the feed rate is too high, or the tool is not clamped properly. For narrow and deep grooves, it is important to use a tool with sufficient strength and rigidity .

Q5: What are "fish scales" or "tearing" on the grooved surface?
A: This surface defect is often called "fish scaling." It can be caused by the workpiece material being too hard, the tool becoming dull, or poor cooling and lubrication . The solution is to control material quality, use a sharp tool, select the right cutting parameters, and ensure good coolant application .
