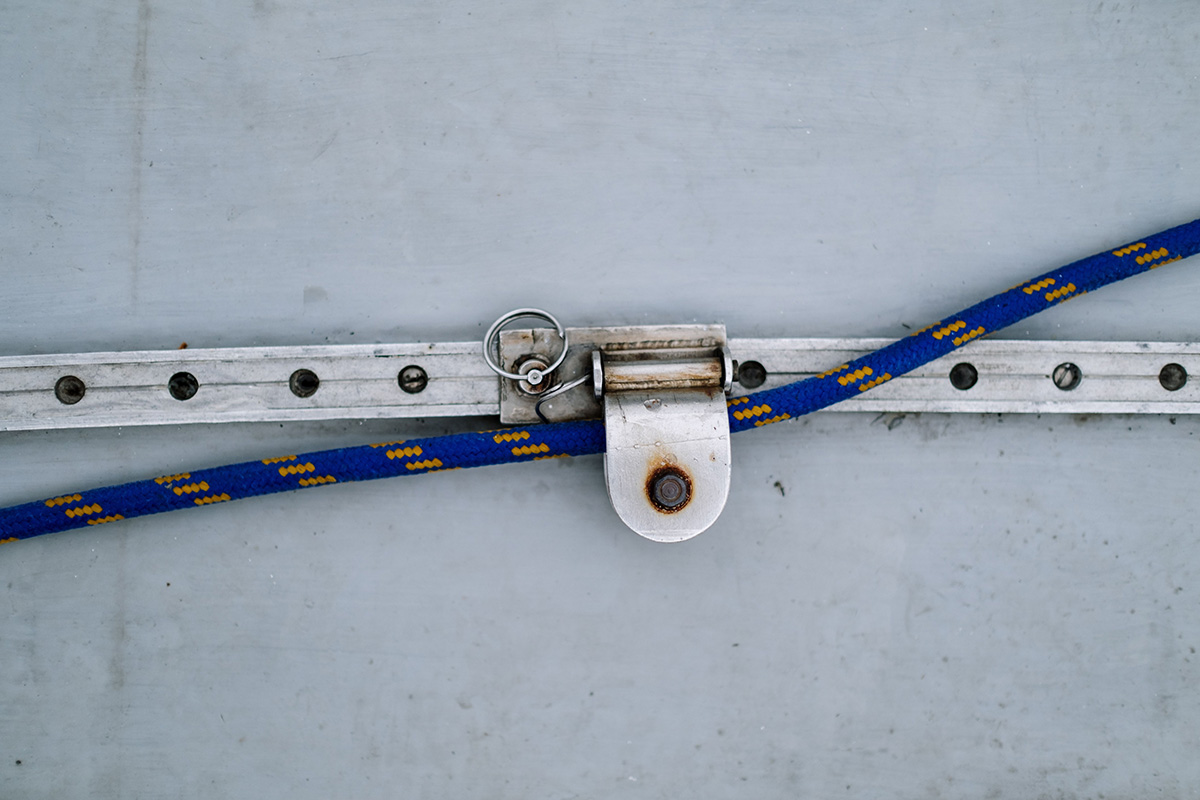

1. What Are Custom Metal Brackets and When Do You Need Them?

A metal bracket is a support, mount, or connection piece. It holds something in place. It transfers load from one part to another. It sounds simple. But in real engineering, brackets are critical structural components. A failed bracket means a failed product.

Custom metal brackets are brackets made to your exact drawing. They are not catalog parts. They are not "close enough." They fit your assembly perfectly — with the right holes, the right angles, the right material, and the right finish.

1.1 Standard vs. Custom Brackets: When Off-the-Shelf Is Not Enough

Standard brackets work for simple jobs. You can buy L-brackets, angle brackets, and shelf brackets from any hardware store. But when your product has specific load requirements, tight space constraints, or unique mounting patterns, standard brackets fall short.

Factor	Standard (Catalog) Brackets	Custom Metal Brackets
Design freedom	Limited to available shapes	Any shape, any hole pattern
Material options	Steel or aluminum (few grades)	Any metal, any grade
Tolerance	±1.0 mm typical	±0.05 mm (CNC machined)
Surface finish	Zinc plated or raw	Anodize, powder coat, plating, brush
Load rating	Not specified or tested	Engineered and verified
Tooling cost	$0	$0 (CNC) to $2,000 (stamping die)
Unit cost (100 pcs)	$0.50–$3.00	$3.00–$15.00
Unit cost (10,000 pcs)	$0.50–$3.00	$0.80–$3.50 (volume pricing)
Lead time	1–3 days (in stock)	2–4 weeks (new part)
Best for	DIY, light-duty, non-critical	OEM products, structural, certified

1.2 Common Applications Across Industries

From server racks to solar panels, custom brackets are the invisible backbone of modern industrial products.

Custom brackets are everywhere. Here is where they matter most:

Industry	Typical Bracket Application	Key Requirement
Electronics / Telecom	Server rack mounts, PCB supports, antenna brackets	EMI shielding, tight tolerance, lightweight
Automotive	Sensor mounts, battery pack brackets, seat frame supports	Vibration resistance, crash safety, corrosion
Solar / Renewable	Panel mounting rails, inverter brackets, junction box mounts	Weatherproof (20+ year outdoor life)
Medical Equipment	Device housings, IV pole clamps, imaging machine frames	Stainless steel, cleanroom-compatible finish
Industrial Machinery	Motor mounts, conveyor supports, guard brackets	High load capacity, impact resistance
Consumer Products	Furniture frames, appliance mounts, display stands	Aesthetic finish, cost efficiency

2. Material Selection for Custom Metal Brackets

The material you choose controls everything: strength, weight, corrosion resistance, cost, and manufacturability. There is no single "best" material. There is only the best material for your application.

2.1 Steel, Stainless Steel, Aluminum, and Brass Comparison

Property	Carbon Steel (1018/1045)	Stainless Steel (304/316)	Aluminum (6061/6063)	Brass (C360)
Tensile strength	370–620 MPa	520–750 MPa	290–310 MPa	330 MPa
Weight (g/cm³)	7.87	8.00	2.70	8.50
Corrosion resistance	Poor (needs coating)	Excellent	Good (with anodize)	Good
Weldability	Good	Fair (304) / Good (316)	Excellent	Fair
Machinability	Good	Fair (work hardens)	Excellent	Excellent
Cost (relative)	Low (1x)	High (3–4x)	Medium (2x)	High (3x)
Best for	High load, indoor	Wet / corrosive env.	Lightweight, outdoor	Decorative, electrical
Typical bracket use	Motor mounts, frames	Marine, food, medical	Server racks, solar	Instrument panels

2.2 Load Capacity and Environmental Considerations

Before choosing a material, answer three questions:

Question 1: How much load will the bracket carry?

For loads under 50 kg, aluminum 6061 is usually enough. For loads from 50 to 500 kg, carbon steel is the standard choice. For loads above 500 kg or in safety-critical applications, use stainless steel 304 or 316. Always add a safety factor of 2x to 3x on the calculated load.

Question 2: What environment will the bracket live in?

Indoor, dry environment? Carbon steel with zinc plating is fine. Outdoor, rain-exposed? Use aluminum with anodizing or stainless steel 316. Marine or chemical environment? 316 stainless only — 304 will pit and rust within 2 years.

Question 3: Does weight matter?

In aerospace, automotive, and portable electronics, every gram counts. Aluminum is one-third the weight of steel at similar strength-to-weight ratios. For a bracket that must hold 20 kg but weigh less than 50 g, aluminum 7075-T6 is the answer — it is as strong as mild steel at one-third the weight.

"The #1 mistake I see in bracket design is over-specifying material. Designers pick 316 stainless 'just to be safe' when 6061-T6 aluminum would do the job at one-third the weight and half the cost. Match the material to the actual load and environment — not to your worst-case fear."
— Robert Kowalski, Senior Mechanical Engineer, Bosch Power Tools Division

3. CNC Machining Capabilities for Bracket Production

CNC milling creates precision holes, slots, and contours on bracket blanks — holding tolerances that stamping and laser cutting alone cannot achieve.

Custom brackets are made through a combination of processes: cutting, milling, bending, drilling, and finishing. At DongGuan YiTai, we use CNC machining as the core of our bracket production. Here is why — and how it works.

3.1 How CNC Milling and Bending Create Precision Brackets

Most brackets start as flat sheet or plate. The production flow is:

Step 1: Blank Cutting. We cut the bracket shape from sheet stock using fiber laser cutting or CNC punch press. Laser is best for thick material (3–12 mm) and complex shapes. Punch press is best for thin material (0.5–3 mm) and high volume. Both hold ±0.1 mm on the blank outline.

Step 2: CNC Milling. The blank goes into a 3-axis or 4-axis CNC machining center. We mill precision holes, slots, counterbores, and threaded features. CNC milling holds ±0.02 mm on hole position and diameter. This is where brackets get their assembly-ready accuracy.

Step 3: CNC Bending. If the bracket has bends (L-shape, U-shape, Z-shape), the milled blank goes to a CNC press brake. The brake forms the bends to the specified angle — typically 90°, but any angle from 30° to 150° is possible. Bend angle tolerance is ±0.5°.

Step 4: Deburring and Inspection. Edges are deburred by hand or vibratory tumbling. A CMM or vision system verifies critical dimensions. The bracket is now ready for surface finishing.

3.2 Tolerances, Tooling, and Batch Size Considerations

Feature	Process	Tolerance	Best Batch Size
Hole diameter	CNC milling / drilling	±0.02 mm	1–50,000 pcs
Hole position	CNC milling	±0.05 mm	1–50,000 pcs
Slot width	CNC milling	±0.05 mm	1–50,000 pcs
Bend angle	CNC press brake	±0.5°	1–10,000 pcs
Bend position	CNC press brake	±0.2 mm	1–10,000 pcs
Overall length	Laser cut / punch	±0.1 mm	1–100,000 pcs
Threaded hole (M3–M8)	CNC tapping	6H class	1–50,000 pcs
Flatness	CNC milling / grinding	0.05 mm / 100 mm	1–10,000 pcs

For brackets under 1,000 pieces, CNC machining is the most cost-effective method — no stamping die needed. For 1,000 to 10,000 pieces, CNC machining is still competitive, especially if the design may change. For 10,000+ pieces of a stable design, progressive stamping becomes cheaper per piece — but requires a $5,000–$20,000 die investment.

4. Surface Finishing Options for Custom Brackets

Surface finishing protects brackets from corrosion and gives them a professional appearance — from clear anodize to custom powder coat colors.

A bracket without surface finish will rust, corrode, or oxidize. The finish you choose depends on the material and the environment:

Finish	Material	Thickness	Corrosion Resistance	Appearance	Cost
Zinc plating + chromate	Steel	5–15 μm	Good (indoor)	Clear / yellow / black	Low
Powder coating	Steel / Aluminum	60–120 μm	Very good	Any RAL color	Low–medium
Type II anodize	Aluminum	5–25 μm	Good	Clear / black / colors	Medium
Type III hard anodize	Aluminum	25–100 μm	Excellent	Dark gray / black	Medium–high
Passivation	Stainless steel	Chemical (no thickness)	Excellent	Natural metal	Low
Nickel plating	Steel / Brass	5–25 μm	Good	Bright silver	Medium
Electropolish	Stainless steel	5–20 μm removed	Excellent	Mirror bright	Medium–high
e-coating (KTL)	Steel	20–30 μm	Excellent	Black, uniform	Medium

For outdoor brackets (solar, telecom, marine), the best value is powder coating over steel or Type III anodizing over aluminum. For medical and food-grade brackets, electropolished 316 stainless is the only choice that meets FDA and EHEDG standards.

5. How DongGuan YiTai Manufactures Custom Metal Brackets to Spec

Your One-Stop Custom Bracket Manufacturing Partner

At DongGuan YiTai Electronic Technologies, we make custom metal brackets from prototype to production. We combine CNC machining, laser cutting, press brake bending, and surface finishing in one facility. One PO. One quality system. One delivery.

Our CNC machining capabilities for brackets:

3-axis and 4-axis CNC milling centers (work envelope: 600 × 400 × 500 mm)
CNC turning centers for round bracket features and bushings
Fiber laser cutting up to 12 mm steel, 10 mm aluminum
CNC punch press for high-volume thin-gauge brackets
CNC press brake (100-ton, 2.5 m bed) for precision bending
Tolerance: ±0.02 mm on machined features, ±0.5° on bends
Materials: Steel (1018, 1045, Q235), Stainless (304, 316, 17-4PH), Aluminum (6061, 6063, 7075), Brass, Copper
Surface finishing: Zinc plating, powder coating, anodizing (Type II/III), passivation, electropolish
Threaded inserts: PEM® self-clinching fasteners, Helicoil® inserts
Inspection: CMM first-article, in-process SPC, full dimensional report on request
Batch size: 1 piece (prototype) to 50,000 pieces (production)
Lead time: 5–7 days (prototype), 2–3 weeks (production)

What makes us different:

We review every bracket design for manufacturability (DFM) before quoting — we catch problems before they cost you money.
We provide a first-article inspection report with every new part — you see the data before we run production.
We handle finishing in-house — no lost time shipping between plating shops.
We can combine CNC machining with sheet metal bending in the same part — features that pure stamping shops cannot do.

Need Custom Metal Brackets Manufactured to Your Drawing?

Send us your CAD file or sketch. We will review it, suggest the best material and process, and send you a quote in 24 hours. No minimum order on prototypes.

Request Your Custom Bracket Quote

6. Frequently Asked Questions

Q1: What is the minimum order quantity for custom metal brackets?

For CNC machined brackets, there is no minimum — we can make 1 piece for a prototype. For stamped brackets (progressive die), the minimum is typically 5,000 pieces because the die cost ($5,000–$20,000) must be amortized. Most customers start with a CNC prototype run of 10–50 pieces, validate the design, then move to stamping for volume production.

Q2: What file format should I send for a bracket quote?

We accept STEP, IGES, SolidWorks (.sldprt), DXF, or DWG files. For 3D machined brackets, STEP is best — it preserves geometry without needing the original CAD software. For 2D laser-cut or bent brackets, DXF or DWG with bend notes is fine. If you only have a sketch or a sample part, send us a photo with dimensions and we will create the CAD model for you (small design fee may apply).

Q3: Can you make brackets from titanium or other exotic metals?

Yes. We have experience with Ti-6Al-4V (Grade 5) for aerospace and medical brackets, Inconel 625 / 718 for high-temperature applications, and copper alloys for electrical brackets. These materials machine differently than steel or aluminum — they work-harden, generate high cutting forces, and require carbide tooling. Tell us the material upfront so we can quote correctly. Exotic metals also take 2–4 weeks longer for material sourcing.

Q4: How do you ensure bracket flatness after bending?

Bending introduces internal stress that can twist the bracket. We control this three ways: First, we use grain-direction aware nesting — we cut blanks so the bend line is perpendicular to the sheet rolling direction. Second, we use bottom-bending (coining) instead of air bending for critical parts — it produces less springback. Third, we measure flatness on a CMM after bending and straighten any out-of-spec parts before finishing. Target flatness is 0.1 mm over 100 mm for standard brackets, 0.05 mm for precision-grade.

Q5: Can you provide material certificates and test reports with the brackets?

Yes. We provide mill test certificates (EN 10204 3.1) for all metal stock — this documents the chemical composition and mechanical properties of the raw material. For finished brackets, we provide a dimensional inspection report (first-article CMM data) and, if required, a load test report (proof load to 1.5x or 2x design load). For automotive and aerospace customers, we can provide PPAP documentation at any level (1 through 5).
