5 Axis Machining - Something you may looking for (Part 2)

author: YITECH

2024-12-06

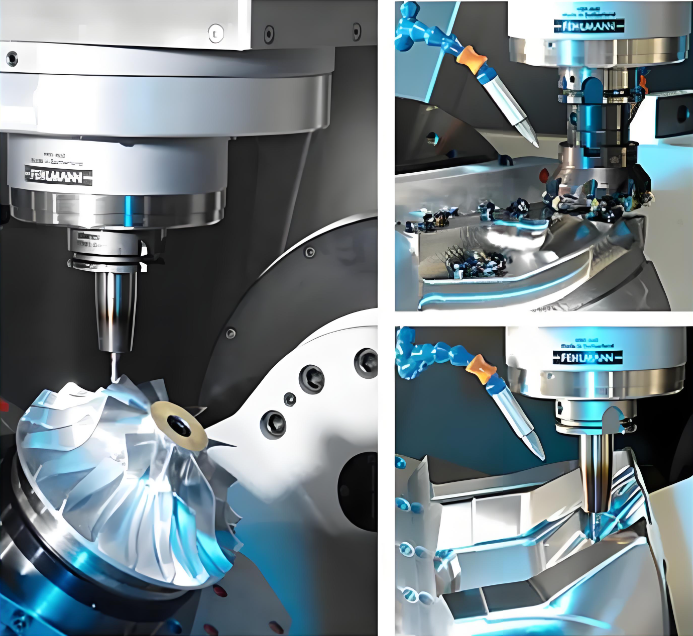

5 Axis Machining cnc - a game-changing technology that may be exactly what you need to take your machining capabilities to the next level.

Today we will continue to introduce the current common form of five-axis CNC machine tools

At present, there are various forms of five-axis CNC machine tools, and machine tool manufacturers are constantly developing new motion modes to meet various needs. Although the mechanical structure is different, the main five-axis machine tool forms on the market include the following five forms:

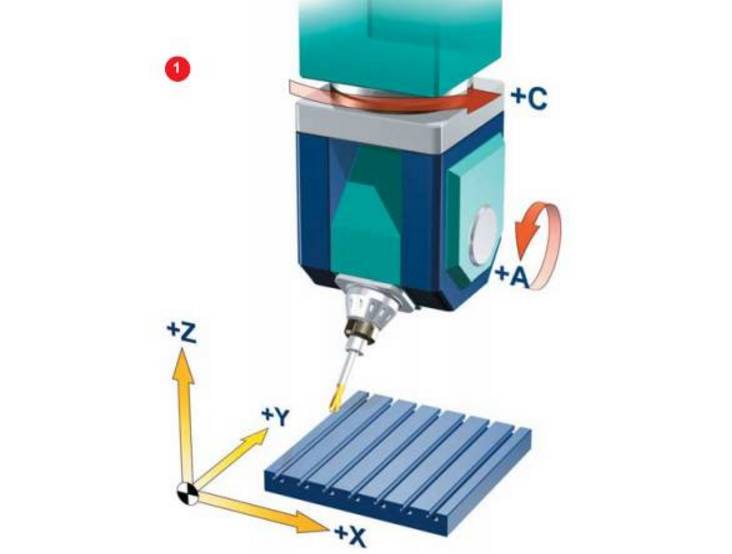

1. Two rotation coordinates directly control the direction of the tool axis

(double swing head form)

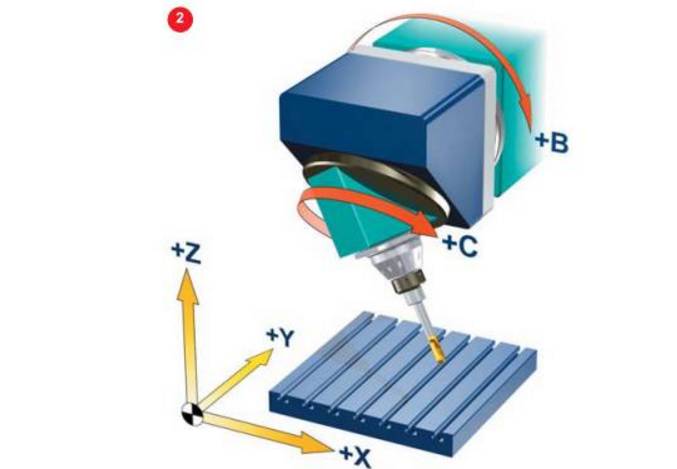

2. The two coordinate axes are at the top of the tool, but the rotation axis is not perpendicular to the linear axis

(vertical pendulum form).

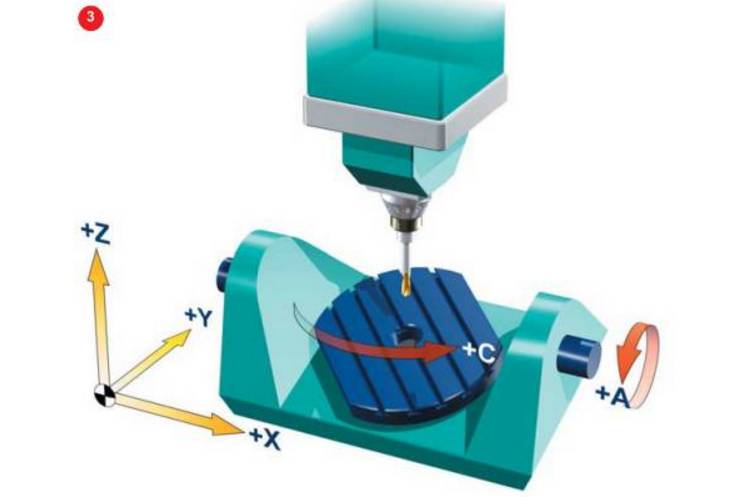

3. Two rotation coordinates directly control the rotation of the space

(double turntable form)

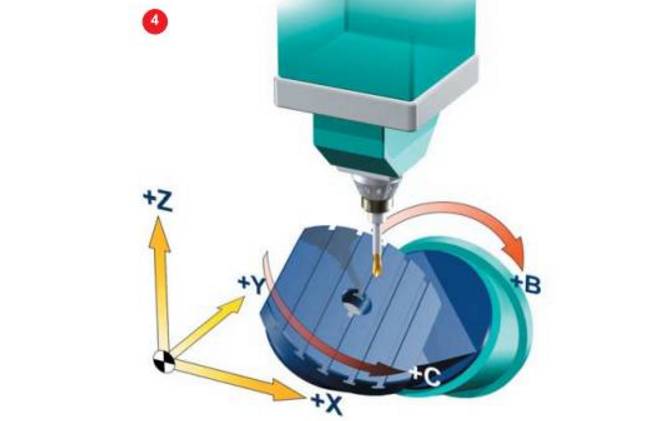

4. Two coordinate axes on the workbench, but the axis of rotation is not perpendicular to the linear axis

(vertical workbench form)

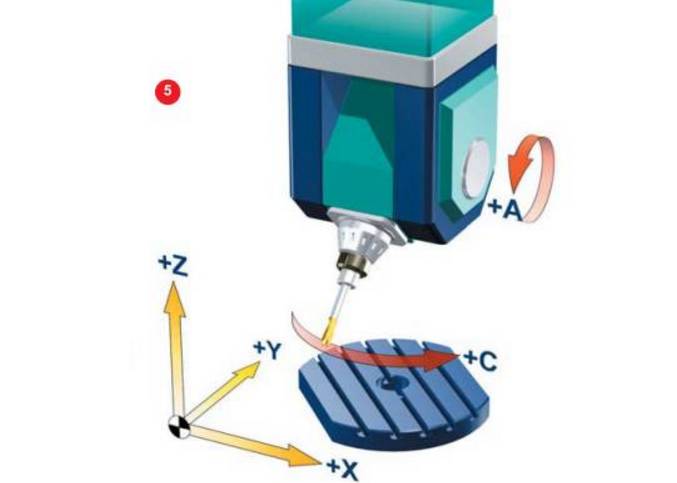

5. Two rotation coordinates, one acting on the tool, one acting on the workpiece

(a pendulum and a rotation form)

Having seen the five-axis machine tools of these structures, I believe all guys should understand what the five-axis machine tools are moving and how to move, then let's learn more in the next page, follow us or contact us for more!
