Jiging
author: YITECH
2024-07-20

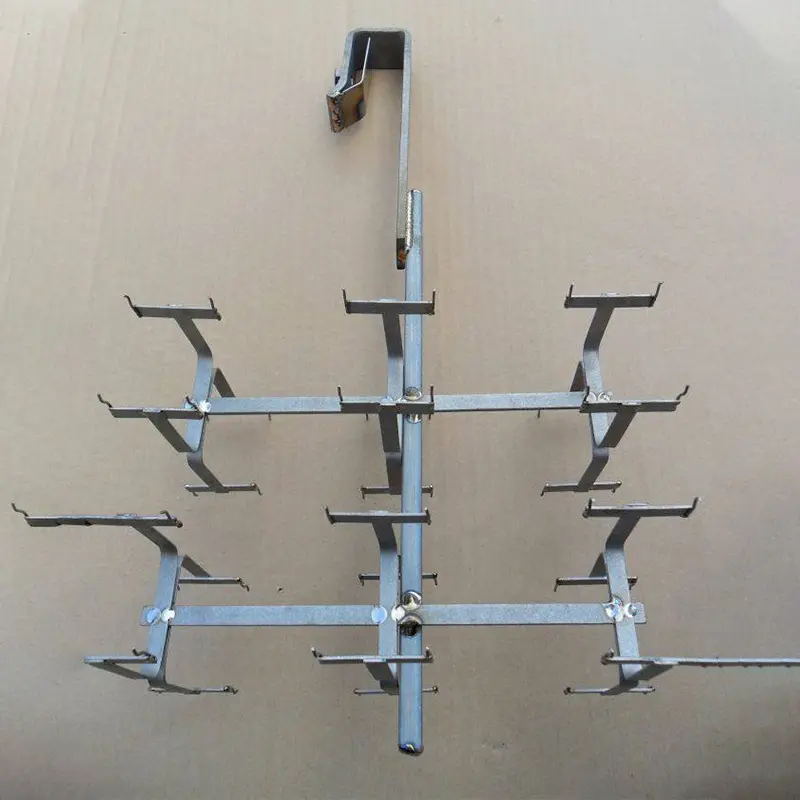

Want to know details of Jiging? Click the link to get more information.
Jigs and fixtures are work fixtures that quickly clamp and position workpieces for fine processing and assembly. The following are common types of fixtures:
1. Clamping fixture: Clamps the workpiece to complete a specific operation and ensures that the workpiece always maintains a stable position and posture during the processing.
2. Locating fixture: Places the workpiece in the correct position for processing and assembly.
3. Adjustable fixture: Can be adjusted as needed to accommodate workpieces of different shapes or sizes.
4. Connecting fixture: Used to connect multiple workpieces and keep them in the correct position and angle.
5. Push fixture: Pushes the workpiece for processing or moves the workpiece to the correct position.
6. Gripping fixture: Gripping or clamping the workpiece for processing and assembly.
7. Frame fixture: Used to support and position large workpieces or components.
8. Modular Fixture: It is composed of multiple independent components, which can be reconfigured in different situations.
The above are some common types of fixtures, which are suitable for various processing and assembly processes. Different fixtures have great differences for different applications.
