Do you know what is Profile?

author: YITECH

2024-10-19

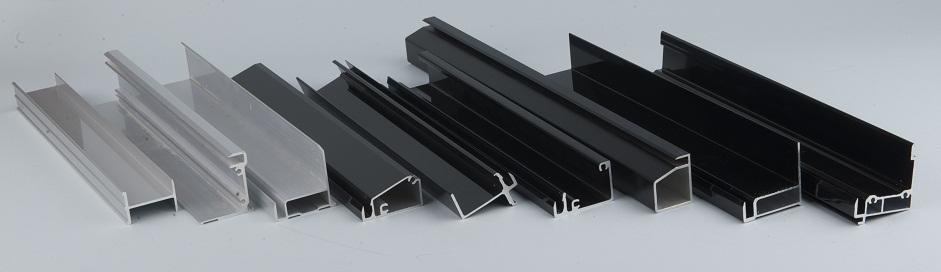

Profile refers to a solid straight bar with a certain section shape and size after plastic processing of metal. Looking for a profile? Just contact us now for your free quote.

There are many kinds and specifications of profiles, and they are widely used, and they play a very important role in rolling production.

Profiles are objects with certain geometric shapes made of iron or steel and materials with certain strength and toughness through rolling, extrusion, casting and other processes. This kind of material has a certain appearance size, a certain shape of the section, and a certain mechanical and physical properties. Profiles can be used alone or further processed into other manufactured products, often used in building structures and manufacturing installation. Mechanical engineers can choose the specific shape, material, heat treatment state, mechanical properties and other parameters of the profile according to the design requirements, and then segment the profile according to the specific size and shape requirements, and then further processing or heat treatment to meet the design accuracy requirements. The material, specification and size of the profile can refer to the corresponding national standards.

There are four common classification methods:

(1) According to the production method classification profiles according to the production method can be divided into hot rolled profiles, cold formed profiles, cold rolled profiles, cold drawn profiles, extruded profiles, forged profiles, hot bent profiles, welded profiles and special rolled profiles.

(2) According to the characteristics of the section classification profiles according to its cross section shape can be divided into simple section profiles and complex section profiles. Simple section profile cross section symmetry, appearance is more uniform, simple, such as round steel, wire, square steel and building steel. Complex section profiles are also called special-shaped section profiles, which are characterized by obvious convex and concave branches in cross section. Therefore, it can be further divided into flange profiles, multi-step profiles, wide and thin profiles, local special processing profiles, irregular curve profiles, composite profiles, periodic section profiles and wire materials and so on.

(3) According to the use of department classification of profiles according to the use of department classification of railway profiles (rail, fishplate, switch rail, wheel, wheel), automotive profiles (rims, tire retainer and lock ring), shipbuilding profiles (L-shaped steel, ball steel, Z steel, Marine window frame steel), structural and building profiles (H-shaped steel, I-steel, channel steel, Angle steel, crane rail, window frame and door Frame materials, steel sheet piles, etc.), mining steel (U-shaped steel, trough steel, mine I-steel, scraper steel, etc.), special profiles for mechanical manufacturing.

(4) According to section size classification profiles according to section size can be divided into large, medium and small profiles, and their division is often classified as they are suitable for rolling on large, medium and small rolling mills. The distinction between large, medium and small is actually not strict. There is also a way to distinguish by a single weight (kg/m). It is generally believed that the single weight below 5 kg/m is a small profile, the single weight of 5 ~ 20 kg/m is a medium profile, and the single weight of more than 20 kg/m is a large profile.

If you want to learn more about profile process, please do not hesitate to pay attention to me, and if you need profile service then just feel free to contact us.
